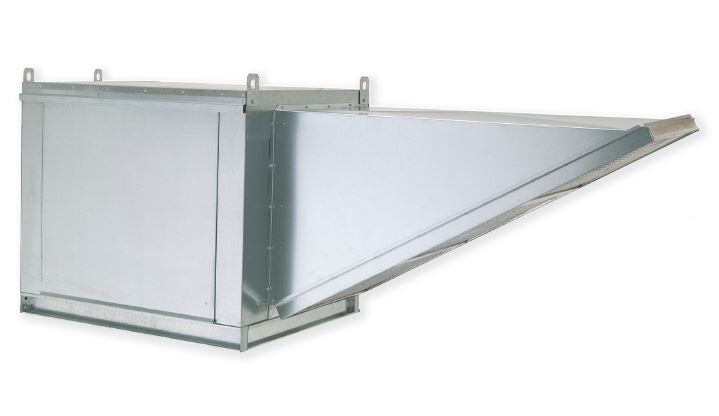

EconAir A1-15D-SC 500-2800 Direct Ddrive Makeup Air Fan with 21" Base - 115v/1-ph, 1 hp
EconAir | SKU:
248191
1
of
2
Loading...
$1,470.99
Unit price /
Unavailable
Couldn't load pickup availability
SHIPS IN 1-3 BUSINESS DAYS
Financing
Financing
Financing info
Description
Description
EconAir A1-15D-SC 500-2800 A Series - Modular Rooftop Filtered Make-up Air Fan
A1-15D-SC 500-2800 MakeupAir Fan 21" base115v, 1 hp No Wire .
A1-15D Untempered Supply Unit with 15" Direct Drive Fan in Size #1 Housing Supply Fan handles 1230 CFM @ 0.400" wc ESP, Fan runs at 1292 RPM. Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 10.2 FLA, ODP-ECM (Open Drip Proof Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left x1
- Sloped Filtered Intake for Size #1 Standard Untempered Supply Unit. 22" Wide x 25.875" Long x 23.375" High. Includes 2" MV EZ Kleen Metal Mesh Filters. x1
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller. x1
Ship-out Dimensions: 38"Lx34"Wx83"H
EconAir A1-15D-SC 500-2800 A Series - Modular Rooftop Filtered Make-up Air Fan
A1-15D-SC 500-2800 MakeupAir Fan 21" base115v, 1 hp No Wire .
A1-15D Untempered Supply Unit with 15" Direct Drive Fan in Size #1 Housing Supply Fan handles 1230 CFM @ 0.400" wc ESP, Fan runs at 1292 RPM. Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 10.2 FLA, ODP-ECM (Open Drip Proof Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left x1
- Sloped Filtered Intake for Size #1 Standard Untempered Supply Unit. 22" Wide x 25.875" Long x 23.375" High. Includes 2" MV EZ Kleen Metal Mesh Filters. x1
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller. x1
Ship-out Dimensions: 38"Lx34"Wx83"H
Specifications
Specifications
Sold By
1/Each
Manufacturer
EconAir
Model Number
A1-15D-SC 500-2800
Type
Make-Up Air Fan
Description
EconAir A1-15D-SC 500-2800 A Series - Modular Rooftop Filtered Make-up Air Fan
A1-15D-SC 500-2800 MakeupAir Fan 21" base115v, 1 hp No Wire .
A1-15D Untempered Supply Unit with 15" Direct Drive Fan in Size #1 Housing Supply Fan handles 1230 CFM @ 0.400" wc ESP, Fan runs at 1292 RPM. Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 10.2 FLA, ODP-ECM (Open Drip Proof Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left x1
- Sloped Filtered Intake for Size #1 Standard Untempered Supply Unit. 22" Wide x 25.875" Long x 23.375" High. Includes 2" MV EZ Kleen Metal Mesh Filters. x1
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller. x1
Ship-out Dimensions: 38"Lx34"Wx83"H
EconAir A1-15D-SC 500-2800 A Series - Modular Rooftop Filtered Make-up Air Fan
A1-15D-SC 500-2800 MakeupAir Fan 21" base115v, 1 hp No Wire .
A1-15D Untempered Supply Unit with 15" Direct Drive Fan in Size #1 Housing Supply Fan handles 1230 CFM @ 0.400" wc ESP, Fan runs at 1292 RPM. Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 10.2 FLA, ODP-ECM (Open Drip Proof Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left x1
- Sloped Filtered Intake for Size #1 Standard Untempered Supply Unit. 22" Wide x 25.875" Long x 23.375" High. Includes 2" MV EZ Kleen Metal Mesh Filters. x1
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller. x1
Ship-out Dimensions: 38"Lx34"Wx83"H
Specifications
Sold By
1/Each
Manufacturer
EconAir
Model Number
A1-15D-SC 500-2800
Type
Make-Up Air Fan
