CaptiveAire DU85HFA-1600-2750 High Speed Direct Drive Centrifugal Upblast Exhaust Fan - CFM Range: 1600 to 2450 - 115v
CaptiveAire | SKU:
137452
1
of
7
Loading...
$961.99
Unit price /
Unavailable
Couldn't load pickup availability
Ships in 1-3 business days
Financing
Financing
Financing info
Description
Description

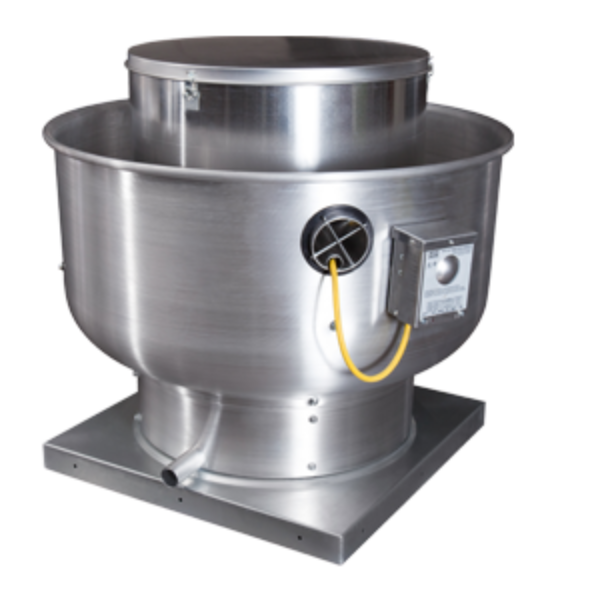

CaptiveAire DU85HFA-1600-2750 High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control
This cooking exhaust fan is designed for continuous operation to remove stale, grease filled air from indoor environments. It has an upblast design to direct the discharged air away from the roof or wall.
(Speed control included for single phase only)
- Disconnect switch and 15-3/4" wheel
- Exhaust Fan handles 1600 to 2450 CFM @ -1.000" wc ESP
- Fan runs at 1268 RPM

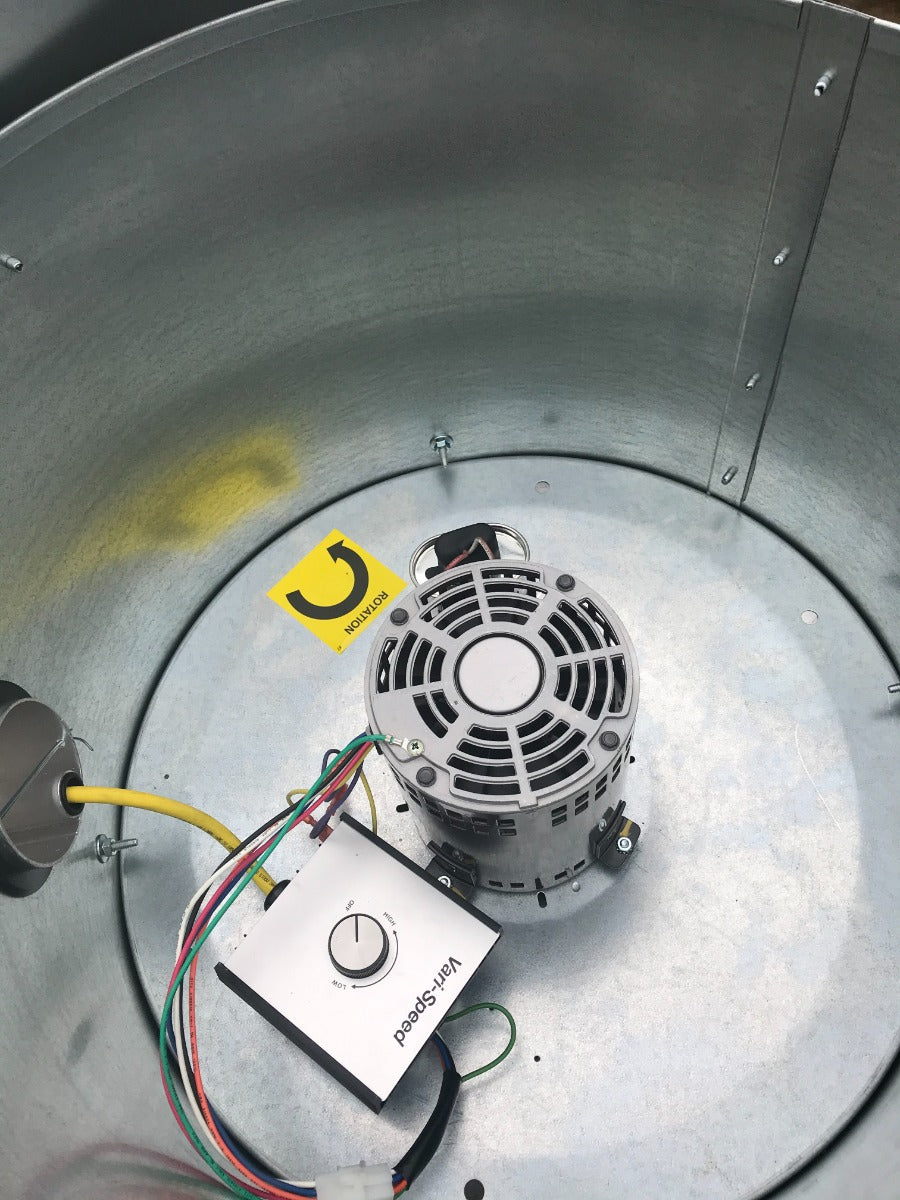

- Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, ODP (Open Drip Proof)
Flashing size needed 23" x 23"
Fan base 24-3/4"
FEATURES & BENEFITS
- Completely enclosed drive compartment protects motor from airborne contaminants
- Forced fresh air through the motor compartment cools motor and ensures long motor life
- Variable Speed Control on Single Phase Units Only. (VFDs required to adjust speed for 3 phase versions)
- Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum
- Units up to 24" nominal wheel can be wall mounted
- Quick release latches allow for easy access to motor compartment. (Size 12 & larger)
- Standard emergency disconnect switch (Size 12 & larger)
 |
 |
 |
CaptiveAire DU85HFA-1600-2750 High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control
This cooking exhaust fan is designed for continuous operation to remove stale, grease filled air from indoor environments. It has an upblast design to direct the discharged air away from the roof or wall.
(Speed control included for single phase only)
- Disconnect switch and 15-3/4" wheel
- Exhaust Fan handles 1600 to 2450 CFM @ -1.000" wc ESP
- Fan runs at 1268 RPM
- Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, ODP (Open Drip Proof)
Flashing size needed 23" x 23"
Fan base 24-3/4"
FEATURES & BENEFITS
- Completely enclosed drive compartment protects motor from airborne contaminants
- Forced fresh air through the motor compartment cools motor and ensures long motor life
- Variable Speed Control on Single Phase Units Only. (VFDs required to adjust speed for 3 phase versions)
- Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum
- Units up to 24" nominal wheel can be wall mounted
- Quick release latches allow for easy access to motor compartment. (Size 12 & larger)
- Standard emergency disconnect switch (Size 12 & larger)
|
|
|
Specifications
Specifications
Sold By
1/Each
Manufacturer
CaptiveAire
Model Number
DU85HFA-1600-2750
Width
31-7/8"
Height
30-1/2"
Base Width
24-3/4"
Style
High Speed Direct Drive Centrifugal Upblast
Type
Exhaust Fan
Video
Video
Description
CaptiveAire DU85HFA-1600-2750 High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control
This cooking exhaust fan is designed for continuous operation to remove stale, grease filled air from indoor environments. It has an upblast design to direct the discharged air away from the roof or wall.
(Speed control included for single phase only)
- Disconnect switch and 15-3/4" wheel
- Exhaust Fan handles 1600 to 2450 CFM @ -1.000" wc ESP
- Fan runs at 1268 RPM
- Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, ODP (Open Drip Proof)
Flashing size needed 23" x 23"
Fan base 24-3/4"
FEATURES & BENEFITS
- Completely enclosed drive compartment protects motor from airborne contaminants
- Forced fresh air through the motor compartment cools motor and ensures long motor life
- Variable Speed Control on Single Phase Units Only. (VFDs required to adjust speed for 3 phase versions)
- Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum
- Units up to 24" nominal wheel can be wall mounted
- Quick release latches allow for easy access to motor compartment. (Size 12 & larger)
- Standard emergency disconnect switch (Size 12 & larger)
|
|
|
CaptiveAire DU85HFA-1600-2750 High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control
This cooking exhaust fan is designed for continuous operation to remove stale, grease filled air from indoor environments. It has an upblast design to direct the discharged air away from the roof or wall.
(Speed control included for single phase only)
- Disconnect switch and 15-3/4" wheel
- Exhaust Fan handles 1600 to 2450 CFM @ -1.000" wc ESP
- Fan runs at 1268 RPM
- Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, ODP (Open Drip Proof)
Flashing size needed 23" x 23"
Fan base 24-3/4"
FEATURES & BENEFITS
- Completely enclosed drive compartment protects motor from airborne contaminants
- Forced fresh air through the motor compartment cools motor and ensures long motor life
- Variable Speed Control on Single Phase Units Only. (VFDs required to adjust speed for 3 phase versions)
- Non-overloading backward inclined wheels, blades and inlets fabricated from aluminum
- Units up to 24" nominal wheel can be wall mounted
- Quick release latches allow for easy access to motor compartment. (Size 12 & larger)
- Standard emergency disconnect switch (Size 12 & larger)
|
|
|
Specifications
Sold By
1/Each
Manufacturer
CaptiveAire
Model Number
DU85HFA-1600-2750
Width
31-7/8"
Height
30-1/2"
Base Width
24-3/4"
Style
High Speed Direct Drive Centrifugal Upblast
Type
Exhaust Fan
Features
Disconnect switch and 15−3/4" wheel
Material
Heavy-Duty Aluminum
