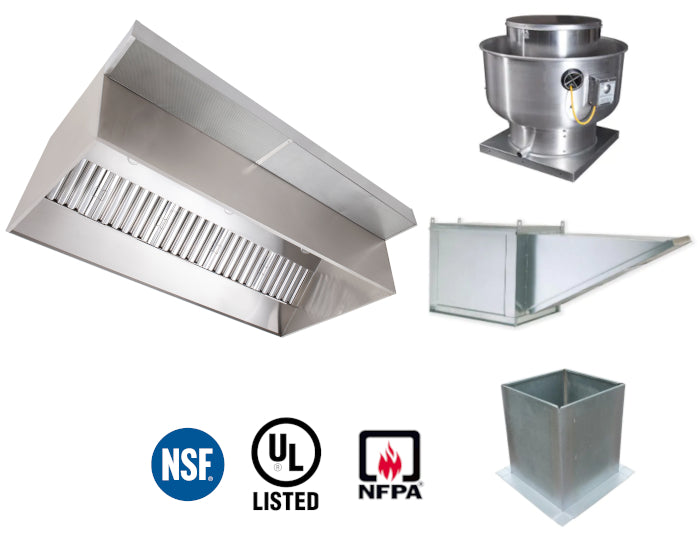

EconAir ECONVH15-PFF KIT 15' Canopy Vent Hood with Plenum, Exhaust Fan, and Make-up Air Fan
EconAir | SKU:
216164
1
of
4
Loading...
$8,789.78
Unit price /
Unavailable
Couldn't load pickup availability
Ships in 1-3 business days
Special Order
Financing
Financing
Financing info
Description
Description

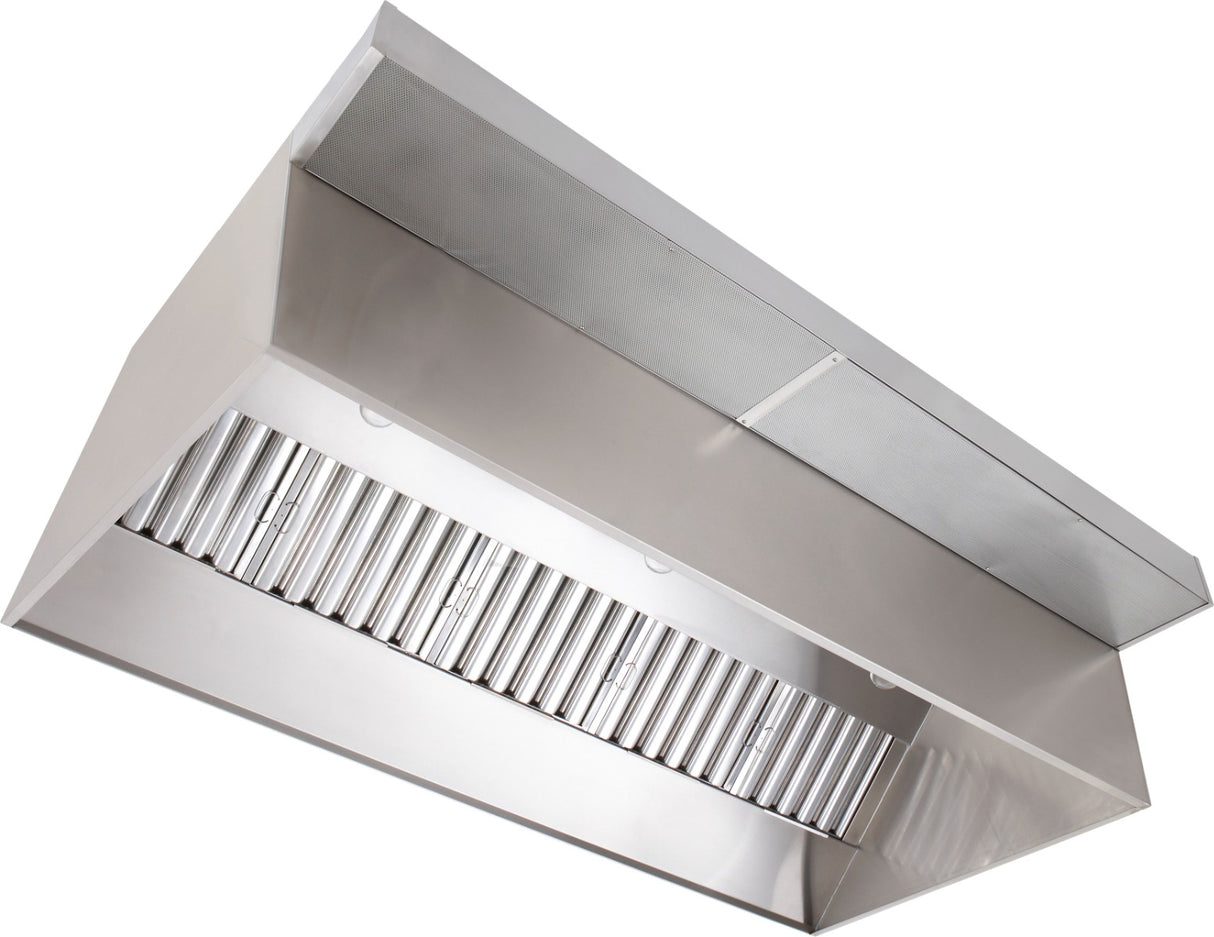

5424T-ND-2-PSP-F - 15ft 0" Long Exhaust-Only Wall Canopy Hood with Front Perforated Supply Plenum with Built-in 3" Back Standoff
- 430 SS Where Exposed
- 11 - FILTERS - 16" tall x 16" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- 5 - L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others
- 2 - EXHAUST RISER - Factory installed 14" Diameter X 4" Height
- 4- SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers
- 2 - 1/2 Pint Grease Cup New Style, Flanged Slotted
- Bulbs By Others
Exhaust Fan Specifications
Two DU85 High Speed Direct Drive and 15-3/4" wheel.
- Exhaust Fan handles 1800 CFM @ -0.750" wc ESP, Fan runs at 1265 RPM.
- Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, Premium Efficiency Electronically Commutated (EC) motors
Supply Fan Specifications

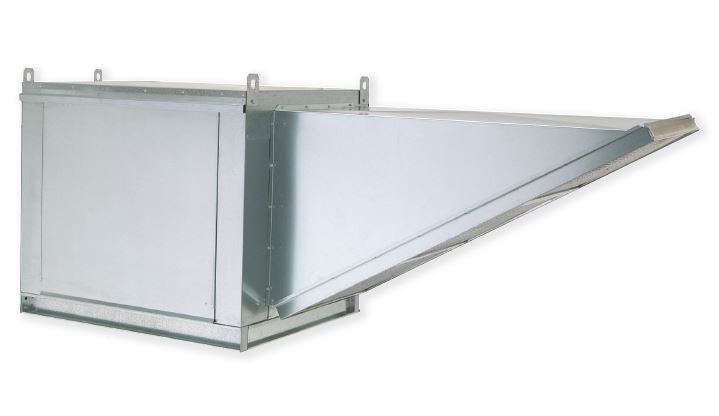

Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
- Supply Fan handles 2700 CFM @ 0.300" wc ESP, Fan runs at 986 RPM.
- Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor).
- Down Discharge - Air Flow Right -> Left
- 2 Flat Roof Curb Flashing
Note: Call for curb design and price on sloped/not flat roof
 |
 |
5424T-ND-2-PSP-F - 15ft 0" Long Exhaust-Only Wall Canopy Hood with Front Perforated Supply Plenum with Built-in 3" Back Standoff
- 430 SS Where Exposed
- 11 - FILTERS - 16" tall x 16" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- 5 - L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others
- 2 - EXHAUST RISER - Factory installed 14" Diameter X 4" Height
- 4- SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers
- 2 - 1/2 Pint Grease Cup New Style, Flanged Slotted
- Bulbs By Others
Exhaust Fan Specifications
Two DU85 High Speed Direct Drive and 15-3/4" wheel.
- Exhaust Fan handles 1800 CFM @ -0.750" wc ESP, Fan runs at 1265 RPM.
- Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, Premium Efficiency Electronically Commutated (EC) motors
Supply Fan Specifications
Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
- Supply Fan handles 2700 CFM @ 0.300" wc ESP, Fan runs at 986 RPM.
- Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor).
- Down Discharge - Air Flow Right -> Left
- 2 Flat Roof Curb Flashing
Note: Call for curb design and price on sloped/not flat roof
|
|
Specifications
Specifications
Sold By
1/Each
Manufacturer
EconAir
Model Number
ECONVH15-PFF
Width
15 ft.
NSF Listed
Yes
USA Made
Yes
Description
5424T-ND-2-PSP-F - 15ft 0" Long Exhaust-Only Wall Canopy Hood with Front Perforated Supply Plenum with Built-in 3" Back Standoff
- 430 SS Where Exposed
- 11 - FILTERS - 16" tall x 16" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- 5 - L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others
- 2 - EXHAUST RISER - Factory installed 14" Diameter X 4" Height
- 4- SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers
- 2 - 1/2 Pint Grease Cup New Style, Flanged Slotted
- Bulbs By Others
Exhaust Fan Specifications
Two DU85 High Speed Direct Drive and 15-3/4" wheel.
- Exhaust Fan handles 1800 CFM @ -0.750" wc ESP, Fan runs at 1265 RPM.
- Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, Premium Efficiency Electronically Commutated (EC) motors
Supply Fan Specifications
Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
- Supply Fan handles 2700 CFM @ 0.300" wc ESP, Fan runs at 986 RPM.
- Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor).
- Down Discharge - Air Flow Right -> Left
- 2 Flat Roof Curb Flashing
Note: Call for curb design and price on sloped/not flat roof
|
|
5424T-ND-2-PSP-F - 15ft 0" Long Exhaust-Only Wall Canopy Hood with Front Perforated Supply Plenum with Built-in 3" Back Standoff
- 430 SS Where Exposed
- 11 - FILTERS - 16" tall x 16" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- 5 - L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others
- 2 - EXHAUST RISER - Factory installed 14" Diameter X 4" Height
- 4- SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers
- 2 - 1/2 Pint Grease Cup New Style, Flanged Slotted
- Bulbs By Others
Exhaust Fan Specifications
Two DU85 High Speed Direct Drive and 15-3/4" wheel.
- Exhaust Fan handles 1800 CFM @ -0.750" wc ESP, Fan runs at 1265 RPM.
- Exhaust Motor: 0.750 HP, 1 Phs, 115 V, 60Hz, 9.8 FLA, Premium Efficiency Electronically Commutated (EC) motors
Supply Fan Specifications
Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
- Supply Fan handles 2700 CFM @ 0.300" wc ESP, Fan runs at 986 RPM.
- Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor).
- Down Discharge - Air Flow Right -> Left
- 2 Flat Roof Curb Flashing
Note: Call for curb design and price on sloped/not flat roof
|
|
Specifications
Sold By
1/Each
Manufacturer
EconAir
Model Number
ECONVH15-PFF
Width
15 ft.
NSF Listed
Yes
USA Made
Yes
