EconAir A1-G10D-MPU Direct Drive Supply Fan with 10" Blower / Electrical System #1 - 115v/1-ph, 1 hp
EconAir | SKU:
250822
1
of
2
Loading...
$12,950.00
Unit price /
Unavailable
Couldn't load pickup availability
SHIPS IN 1-3 BUSINESS DAYS
Financing
Financing
Financing info
Description
Description

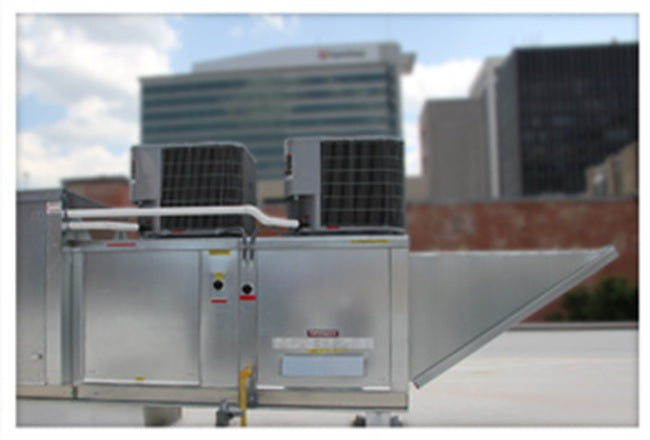

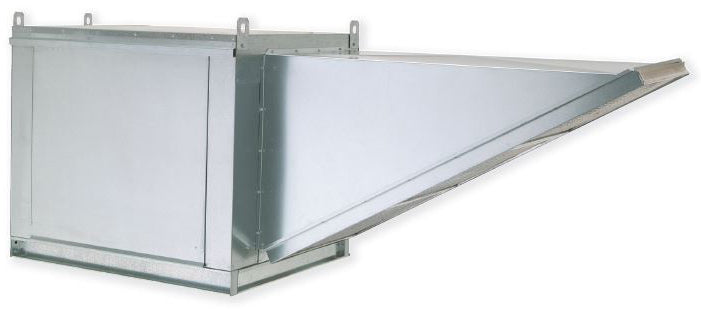

EconAir A1-G10D-MPU Make-up Air Fan
EA-A1-G10-MPU Direct Drive Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch. Supply Fan handles 1200 CFM @ 0.500" wc ESP, Fan runs at 896 RPM. Supply Motor: 1.000 HP, 1 Phase, 208 V, 60Hz, 6.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left
- Sloped Filtered Intake for Size #1 Modular Untempered Supply Unit.
21.813" Wide x 44.375" Long x 23.375" High.
Includes 2" MV EZ Kleen Metal Mesh Filters. - Insulated Blower Housing Sizes 1-2 Commercial Modular
- Support shell for Size 1 Modular Package Unit. Includes control vestibule. Includes condenser supports. Does not include return air or inlet air damper.
- 3 Ton, Single Circuit Modular Packaged Cooling Option for Size 1 Modular Packaged Unit. Includes Condenser, DX Coil, Filter/Dryer Kit, Hard Start Kit, Thermal Expansion Valve, R410A Refrigerant, and Refrigerant Piping. (1,100 to 1,800 cfm) When ordered with opposite airflow condensers access and coil piping will remain in standard position. Drain and sleds will move to the opposite side. Any other change will require CLI. CONDENSERS REQUIRE SEPARATE 208V, 1 PHASE POWER SUPPLY UNLESS ORDERED WITH SINGLE POINT CONNECTION. Coil = 2EZ1001N
- Control Package for Mod Package Unit Cooling Only Unit. Includes airflow proving switch, RTUlink-ACHP board and terminal blocks.
- Motorized Back Draft Damper 16" X 18" for Size 1 Untempered Units w/Extended Shaft, Standard Galvanized Construction, 3/4" Rear Flange, Low Leakage, TFB120S Actuator Included
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller.
EconAir A1-G10D-MPU Make-up Air Fan
EA-A1-G10-MPU Direct Drive Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch. Supply Fan handles 1200 CFM @ 0.500" wc ESP, Fan runs at 896 RPM. Supply Motor: 1.000 HP, 1 Phase, 208 V, 60Hz, 6.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left
- Sloped Filtered Intake for Size #1 Modular Untempered Supply Unit.
21.813" Wide x 44.375" Long x 23.375" High.
Includes 2" MV EZ Kleen Metal Mesh Filters. - Insulated Blower Housing Sizes 1-2 Commercial Modular
- Support shell for Size 1 Modular Package Unit. Includes control vestibule. Includes condenser supports. Does not include return air or inlet air damper.
- 3 Ton, Single Circuit Modular Packaged Cooling Option for Size 1 Modular Packaged Unit. Includes Condenser, DX Coil, Filter/Dryer Kit, Hard Start Kit, Thermal Expansion Valve, R410A Refrigerant, and Refrigerant Piping. (1,100 to 1,800 cfm) When ordered with opposite airflow condensers access and coil piping will remain in standard position. Drain and sleds will move to the opposite side. Any other change will require CLI. CONDENSERS REQUIRE SEPARATE 208V, 1 PHASE POWER SUPPLY UNLESS ORDERED WITH SINGLE POINT CONNECTION. Coil = 2EZ1001N
- Control Package for Mod Package Unit Cooling Only Unit. Includes airflow proving switch, RTUlink-ACHP board and terminal blocks.
- Motorized Back Draft Damper 16" X 18" for Size 1 Untempered Units w/Extended Shaft, Standard Galvanized Construction, 3/4" Rear Flange, Low Leakage, TFB120S Actuator Included
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller.
Specifications
Specifications
Sold By
1/Each
Manufacturer
EconAir
Model Number
A1-G10D-MPU
Length
44-3/8"
Width
21-7/8"
Height
23-3/8"
Type
Supply Fan
Horsepower
1 HP
Description
EconAir A1-G10D-MPU Make-up Air Fan
EA-A1-G10-MPU Direct Drive Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch. Supply Fan handles 1200 CFM @ 0.500" wc ESP, Fan runs at 896 RPM. Supply Motor: 1.000 HP, 1 Phase, 208 V, 60Hz, 6.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left
- Sloped Filtered Intake for Size #1 Modular Untempered Supply Unit.
21.813" Wide x 44.375" Long x 23.375" High.
Includes 2" MV EZ Kleen Metal Mesh Filters. - Insulated Blower Housing Sizes 1-2 Commercial Modular
- Support shell for Size 1 Modular Package Unit. Includes control vestibule. Includes condenser supports. Does not include return air or inlet air damper.
- 3 Ton, Single Circuit Modular Packaged Cooling Option for Size 1 Modular Packaged Unit. Includes Condenser, DX Coil, Filter/Dryer Kit, Hard Start Kit, Thermal Expansion Valve, R410A Refrigerant, and Refrigerant Piping. (1,100 to 1,800 cfm) When ordered with opposite airflow condensers access and coil piping will remain in standard position. Drain and sleds will move to the opposite side. Any other change will require CLI. CONDENSERS REQUIRE SEPARATE 208V, 1 PHASE POWER SUPPLY UNLESS ORDERED WITH SINGLE POINT CONNECTION. Coil = 2EZ1001N
- Control Package for Mod Package Unit Cooling Only Unit. Includes airflow proving switch, RTUlink-ACHP board and terminal blocks.
- Motorized Back Draft Damper 16" X 18" for Size 1 Untempered Units w/Extended Shaft, Standard Galvanized Construction, 3/4" Rear Flange, Low Leakage, TFB120S Actuator Included
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller.
EconAir A1-G10D-MPU Make-up Air Fan
EA-A1-G10-MPU Direct Drive Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch. Supply Fan handles 1200 CFM @ 0.500" wc ESP, Fan runs at 896 RPM. Supply Motor: 1.000 HP, 1 Phase, 208 V, 60Hz, 6.9 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left
- Sloped Filtered Intake for Size #1 Modular Untempered Supply Unit.
21.813" Wide x 44.375" Long x 23.375" High.
Includes 2" MV EZ Kleen Metal Mesh Filters. - Insulated Blower Housing Sizes 1-2 Commercial Modular
- Support shell for Size 1 Modular Package Unit. Includes control vestibule. Includes condenser supports. Does not include return air or inlet air damper.
- 3 Ton, Single Circuit Modular Packaged Cooling Option for Size 1 Modular Packaged Unit. Includes Condenser, DX Coil, Filter/Dryer Kit, Hard Start Kit, Thermal Expansion Valve, R410A Refrigerant, and Refrigerant Piping. (1,100 to 1,800 cfm) When ordered with opposite airflow condensers access and coil piping will remain in standard position. Drain and sleds will move to the opposite side. Any other change will require CLI. CONDENSERS REQUIRE SEPARATE 208V, 1 PHASE POWER SUPPLY UNLESS ORDERED WITH SINGLE POINT CONNECTION. Coil = 2EZ1001N
- Control Package for Mod Package Unit Cooling Only Unit. Includes airflow proving switch, RTUlink-ACHP board and terminal blocks.
- Motorized Back Draft Damper 16" X 18" for Size 1 Untempered Units w/Extended Shaft, Standard Galvanized Construction, 3/4" Rear Flange, Low Leakage, TFB120S Actuator Included
- ECM Wiring Package and Manual or 0-10VDC Control for Supply EC motors. RTC Controller.
Specifications
Sold By
1/Each
Manufacturer
EconAir
Model Number
A1-G10D-MPU
Length
44-3/8"
Width
21-7/8"
Height
23-3/8"
Type
Supply Fan
Horsepower
1 HP
Volt/Hz/Ph
208v/60/1-ph
