Manitowoc UDP0240A NEO Air Cooled Undercounter Dice Ice Machine with 90 lb. Bin 26" - 240 lb/24hrs
Manitowoc | SKU:
302383
1
of
7
Loading...
$2,998.46
Unit price /
Unavailable
Couldn't load pickup availability
Special Order
Description
Description

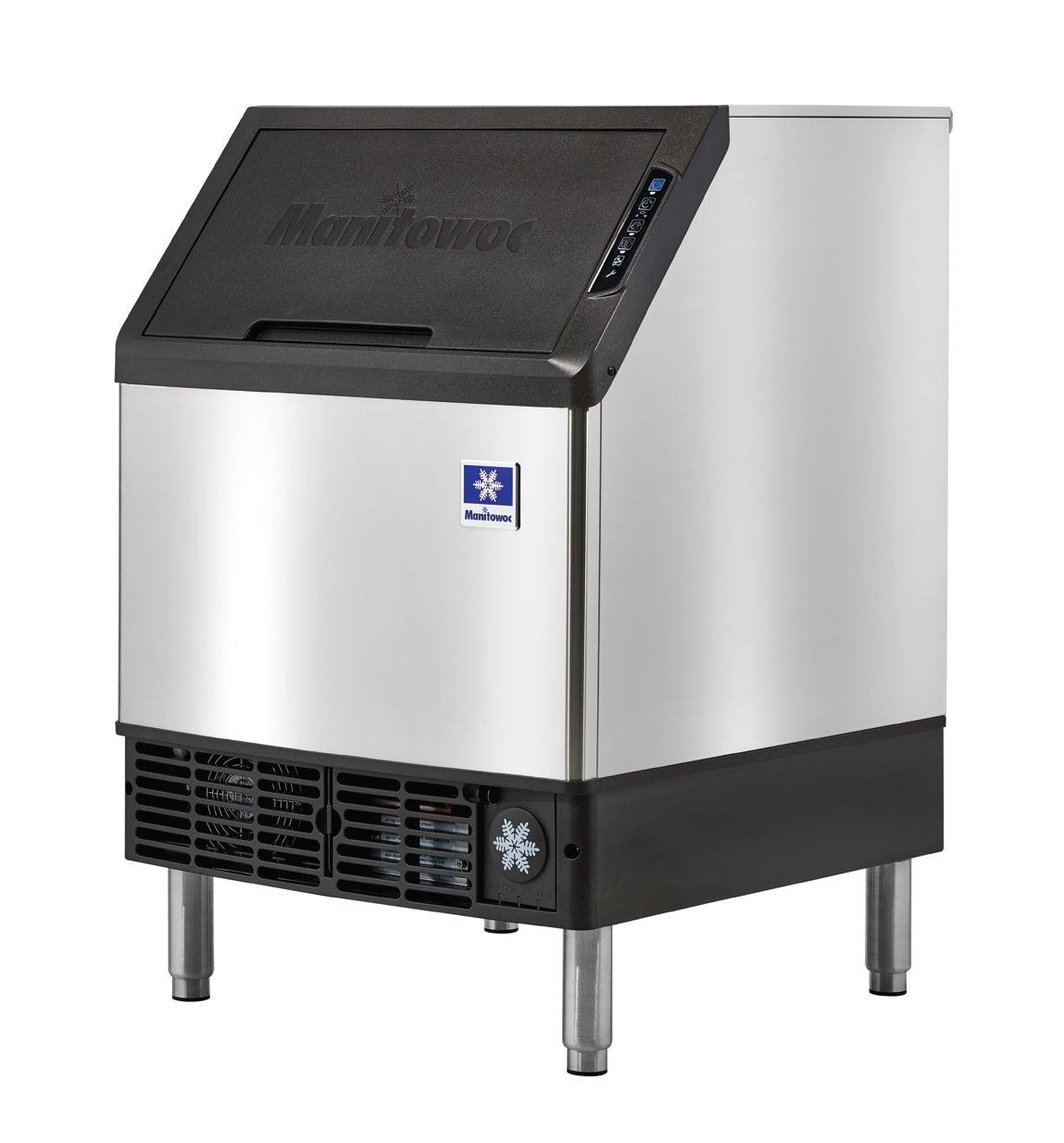

Manitowoc UDP0240A Undercounter Ice Machine
The NEO ice machines from Manitowoc provides a new level of performance, intelligence, and convince. Neo offers an all-in-one solution to your undercounter ice cube needs. It is perfect for restaurants, bars, cafes, coffee shops, stadium boxes, offices, medical uses, delis, and even churches. It is ideal for any small-volume ice need.

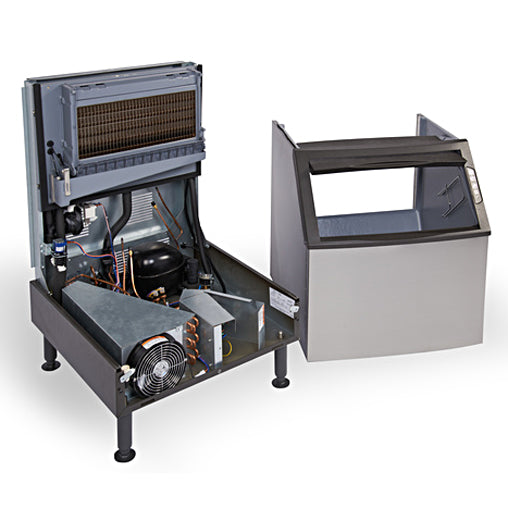

The Manitowoc UDP0240A is a remote, air-cooled machine that can produce 240 pounds of daily flake ice production with a storage capacity of 90 pounds. It has a compact size for easy placement under counters, or as a standalone. It offers a forward-sliding storage bin for easy access to refrigeration components without having to move the entire ice machine. It has a smooth, sealed food-zone with a removable water trough, distribution tube, and damper door for fast cleaning. AlphaSan is added to key internal components to extended time in-between cleaning. This feature has been molded into key aspects of this unit which then results in less cleanings. Not only that, but it includes rounded corners that can be wiped easily with a sponge.
The front access controls allow you to initiate ice, off, and clean operations with the simple upfront selector switch. The controls include a full bin indicator that illuminates when harvested ice reaches the top of the bin. The service icon illuminates in red and blinks to provide advance notice of a potential problem. The clean icon light indicates the machine is going through a clean cycle. The delay is a feature that allows an operator to set a 4, 12, or 24-hour delay of production. This makes it possible to better manage ice production and lower water and energy costs even further.
Manufacturer Details:
NEO® Undercounter Ice Maker, R290 Refrigerant, dice size ice, air-cooled, self-contained with integrated 5 micron on-board water filter. 26"W x 28.5"W x 38.5"H, production capacity up to 240 lbs/24 hours at 70°/50° (197 lbs. AHRI certified at 90°/70°), 90 lbs. storage capacity, touchpad controls, production delay (8 & 16 hour), clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable stainless steel legs.
 |
 |
 |
 |
 |
 |
Common Questions & Answers
What are the electrical specifications?
It needs accommodations for 115 volts, 60 hertz, and is single phase, other specifications are available.
What are the operating limits?
The ambient air temperature must be in between 40 to 110 degrees Fahrenheit. The ambient water temperature range should be in between 45 to 90 degrees Fahrenheit.
What are the required clearance measurements?
There is no minimum clearance required, however, recommended clearance for top, sides, and back is 5".
If you have any further questions, or are looking to purchase this product please give us at Jean's Restaurant Supply and one of our educated sales reps will answer you. It is our pleasure to serve you, and nothing will make us happier than helping you succeed.
Manitowoc UDP0240A Undercounter Ice Machine
The NEO ice machines from Manitowoc provides a new level of performance, intelligence, and convince. Neo offers an all-in-one solution to your undercounter ice cube needs. It is perfect for restaurants, bars, cafes, coffee shops, stadium boxes, offices, medical uses, delis, and even churches. It is ideal for any small-volume ice need.
The Manitowoc UDP0240A is a remote, air-cooled machine that can produce 240 pounds of daily flake ice production with a storage capacity of 90 pounds. It has a compact size for easy placement under counters, or as a standalone. It offers a forward-sliding storage bin for easy access to refrigeration components without having to move the entire ice machine. It has a smooth, sealed food-zone with a removable water trough, distribution tube, and damper door for fast cleaning. AlphaSan is added to key internal components to extended time in-between cleaning. This feature has been molded into key aspects of this unit which then results in less cleanings. Not only that, but it includes rounded corners that can be wiped easily with a sponge.
The front access controls allow you to initiate ice, off, and clean operations with the simple upfront selector switch. The controls include a full bin indicator that illuminates when harvested ice reaches the top of the bin. The service icon illuminates in red and blinks to provide advance notice of a potential problem. The clean icon light indicates the machine is going through a clean cycle. The delay is a feature that allows an operator to set a 4, 12, or 24-hour delay of production. This makes it possible to better manage ice production and lower water and energy costs even further.
Manufacturer Details:
NEO® Undercounter Ice Maker, R290 Refrigerant, dice size ice, air-cooled, self-contained with integrated 5 micron on-board water filter. 26"W x 28.5"W x 38.5"H, production capacity up to 240 lbs/24 hours at 70°/50° (197 lbs. AHRI certified at 90°/70°), 90 lbs. storage capacity, touchpad controls, production delay (8 & 16 hour), clean button, filter replacement, full bin, and service indictors, forward sliding storage bin for access to refrigeration components, 6"adjustable stainless steel legs.
|
|
|
|
|
|
Common Questions & Answers
What are the electrical specifications?
It needs accommodations for 115 volts, 60 hertz, and is single phase, other specifications are available.
What are the operating limits?
The ambient air temperature must be in between 40 to 110 degrees Fahrenheit. The ambient water temperature range should be in between 45 to 90 degrees Fahrenheit.
What are the required clearance measurements?
There is no minimum clearance required, however, recommended clearance for top, sides, and back is 5".
If you have any further questions, or are looking to purchase this product please give us at Jean's Restaurant Supply and one of our educated sales reps will answer you. It is our pleasure to serve you, and nothing will make us happier than helping you succeed.
Specifications
Sold By
1/Each
Manufacturer
Manitowoc
Model Number
UDP0240A
Width
26"
Depth
28-1/2
Height
38-1/2"
Series
NEO
Type
Ice Machine with Bin
Installation Type
Undercounter
Door Style
Lift Up
Leg Size
6" adjustable stainless steel legs.
Ice Type
Dice Size Cubes
24 Hour Ice Yield
240 lb.
Bin Storage Capacity
90 lb.
Refrigerant Type
R-290 (Hydrocarbon)
Condenser Type
Air Cooled
Water Inlet Size
3/8"
Water Usage
15.5 Gallons Per 100 lbs.
Volt/Hz/Ph
115v/60/1-ph
Amps
6 Amps
Plug Type
NEMA 5-15P
Cord Length
8 ft.
Warranty
Machine 3 year parts and labor - Evaporator 5 year parts and labor - Compressor 5 year parts
Warranty Disclaimer
RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
Specifications
Specifications
Sold By
1/Each
Manufacturer
Manitowoc
Model Number
UDP0240A
Width
26"
Depth
28-1/2
Height
38-1/2"
Series
NEO
Type
Ice Machine with Bin
Installation Type
Undercounter
Door Style
Lift Up
Leg Size
6" adjustable stainless steel legs.
Ice Type
Dice Size Cubes
24 Hour Ice Yield
240 lb.
Bin Storage Capacity
90 lb.
Refrigerant Type
R-290 (Hydrocarbon)
Condenser Type
Air Cooled
Water Inlet Size
3/8"
Water Usage
15.5 Gallons Per 100 lbs.
Volt/Hz/Ph
115v/60/1-ph
Amps
6 Amps
Plug Type
NEMA 5-15P
Cord Length
8 ft.
Warranty
Machine 3 year parts and labor - Evaporator 5 year parts and labor - Compressor 5 year parts
Warranty Disclaimer
RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
Resources
Resources
-
Spec Sheet
Open file -
Brochure
Visit website -
Ice Type Brochure
Open file
