Used Restaurant Equipment - CaptiveAire A1-G10-1415 Make-Up Air fan 10" Blower, 1415 CFM - 115v
Used | SKU:
249082
1
of
4
Loading...
$675.00
Unit price /
Unavailable
Couldn't load pickup availability
Ships in 1-3 business days
Financing
Financing
Financing info
Description
Description

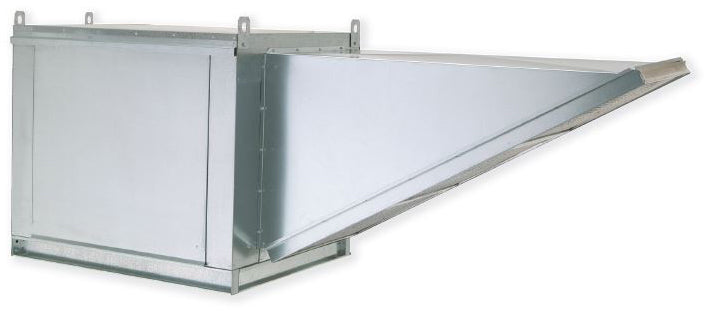

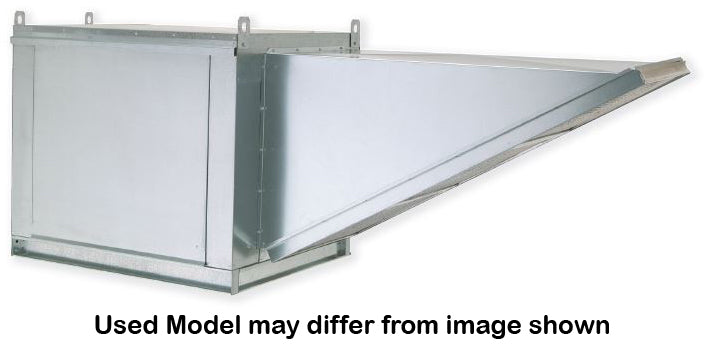

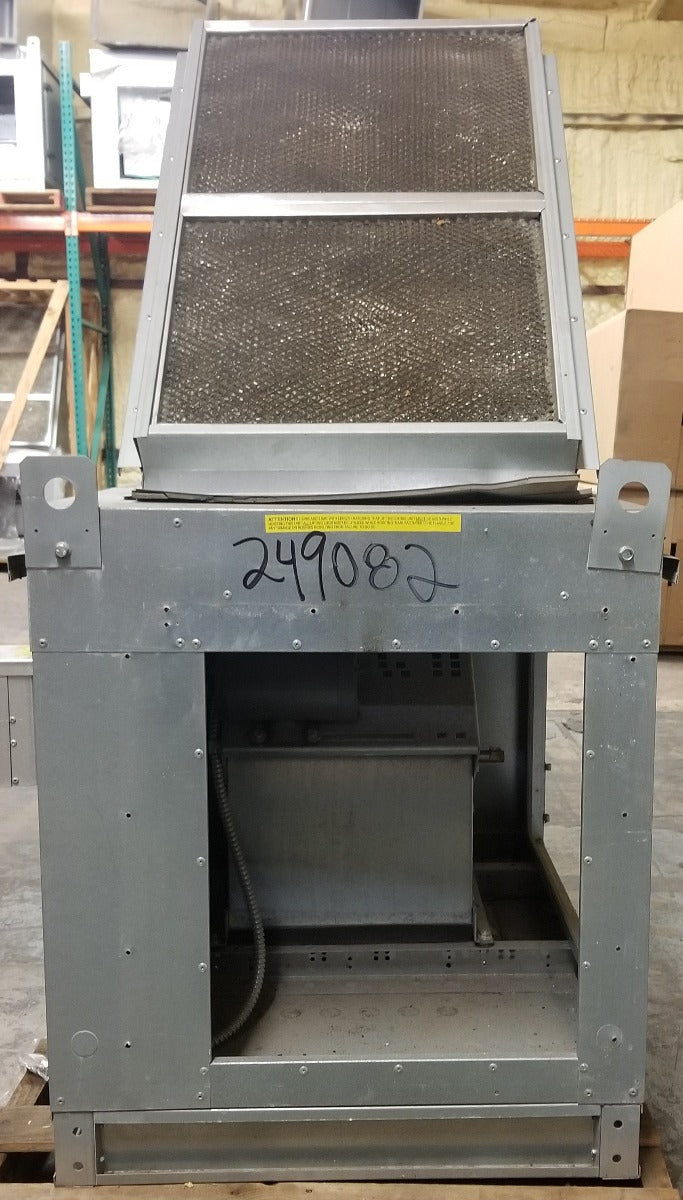

CaptiveAire A1-G10-1415 A Series - Modular Rooftop Filtered Make-up Air Fan
Used Unit - No Warranty. SOLD AS IS! NO RETURNS / EXCHANGES!
The Air Handler Unit is the heart of the modular fan system. It is designed to deliver fresh outside make up air for installations requiring frequent air changes. Handles higher air volumes than standard unit.
- A-G10 Untempered Supply Unit with 10" Blower in Size #1 Housing
- Supply Fan handles 1415 CFM @ 0.250" wc ESP
- Fan runs at 562 RPM

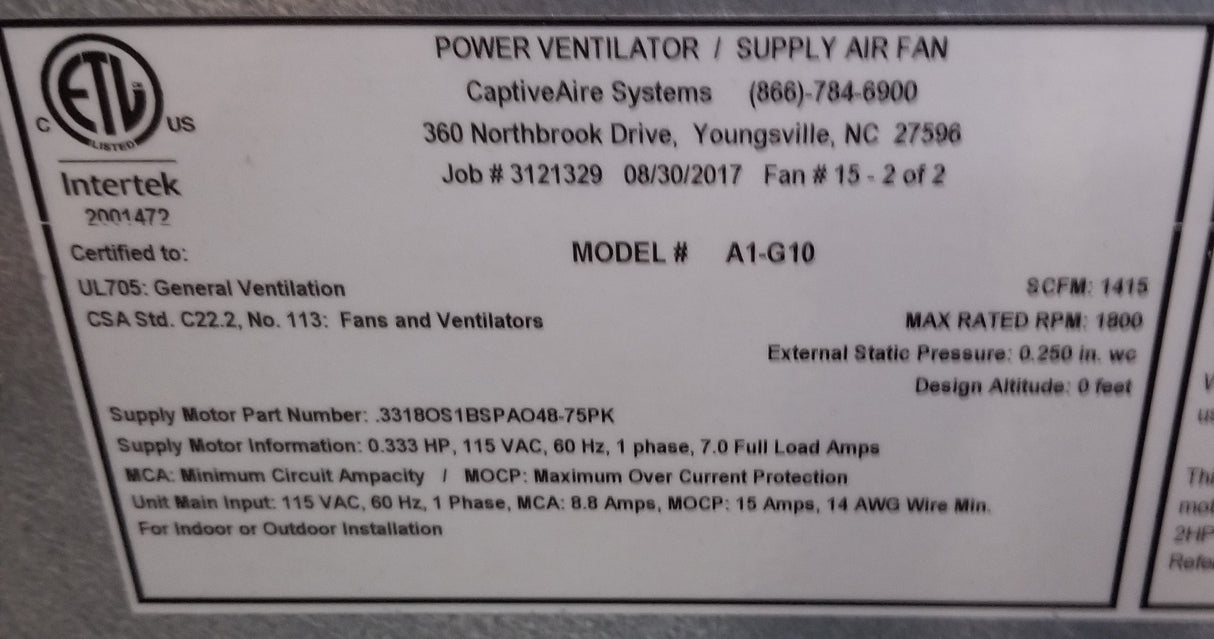

- Supply Motor: 0.333 HP, 1 Phase, 115 V, 60Hz, 7.0 FLA
- ODP (Open Drip Proof) Down Discharge - Air Flow Right to Left
- Sloped Filtered Intake for Size #1 Modular Untempered Supply Unit
- 21.813" Wide x 44.375" Long x 23.375" High
- Includes 2" MV EZ Kleen Metal Mesh Filters
Flashing size needed 21" x 21" (Sold Separately)
FEATURES & BENEFITS
- Removable service doors on both sides
- Vibration Isolation
- High efficiency motors with a variable pitch motor pulley, which permits for system balancing and field adjustment
- Compact weatherproof design
- Adjustable drive sheaves (belt drive units only which include pulleys and belts)
- Horizontal or down discharge
- 2" washable filters
- Inlet screen
- G90 galvanized steel
- Removable lid with spring loaded lid latches for full easy accessibility to all components for inspection, maintenance and cleaning
- Adjustable drive sheaves
- Disconnect switch
- Lifting points
- ETL Listed under file number J20029811-001 and complies with UL705 and CSA C22.2, No. 113 Standards
 |
 |
CaptiveAire A1-G10-1415 A Series - Modular Rooftop Filtered Make-up Air Fan
Used Unit - No Warranty. SOLD AS IS! NO RETURNS / EXCHANGES!
The Air Handler Unit is the heart of the modular fan system. It is designed to deliver fresh outside make up air for installations requiring frequent air changes. Handles higher air volumes than standard unit.
- A-G10 Untempered Supply Unit with 10" Blower in Size #1 Housing
- Supply Fan handles 1415 CFM @ 0.250" wc ESP
- Fan runs at 562 RPM
- Supply Motor: 0.333 HP, 1 Phase, 115 V, 60Hz, 7.0 FLA
- ODP (Open Drip Proof) Down Discharge - Air Flow Right to Left
- Sloped Filtered Intake for Size #1 Modular Untempered Supply Unit
- 21.813" Wide x 44.375" Long x 23.375" High
- Includes 2" MV EZ Kleen Metal Mesh Filters
Flashing size needed 21" x 21" (Sold Separately)
FEATURES & BENEFITS
- Removable service doors on both sides
- Vibration Isolation
- High efficiency motors with a variable pitch motor pulley, which permits for system balancing and field adjustment
- Compact weatherproof design
- Adjustable drive sheaves (belt drive units only which include pulleys and belts)
- Horizontal or down discharge
- 2" washable filters
- Inlet screen
- G90 galvanized steel
- Removable lid with spring loaded lid latches for full easy accessibility to all components for inspection, maintenance and cleaning
- Adjustable drive sheaves
- Disconnect switch
- Lifting points
- ETL Listed under file number J20029811-001 and complies with UL705 and CSA C22.2, No. 113 Standards
|
|
