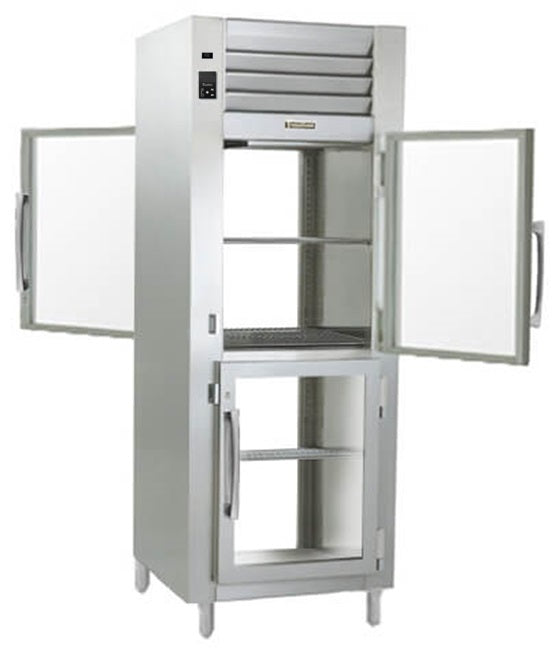

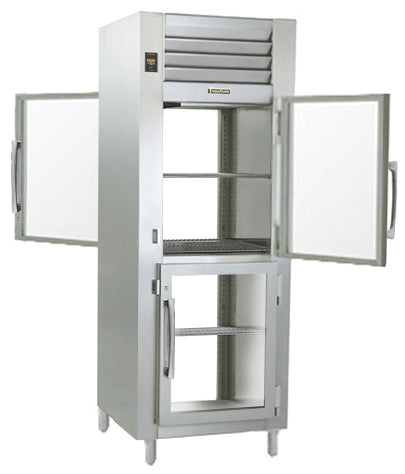

Traulsen AHF132WP-HHG Spec-Line 1-Section 2 Glass Half Door Reach-In Pass-Thru Heated Holding Cabinet 30" - 25.73 cu. ft.
Traulsen | SKU:
31545
1
of
6
Loading...
$17,111.66
Unit price /
Unavailable
Couldn't load pickup availability
Corpus Christi Store: 0 in stock
McAllen Store: 0 in stock
Financing
Financing
Financing info
Description
Description
Traulsen AHF132WP-HHG Reach-In Pass-Thru Heated Holding Cabinet
All successful restaurants need a well running heated holding cabinet. Utilizing one in your restaurant will not only preserves the freshness of your food, but this product was designed to keep whatever it is that you're storing from drying out. These are both important factors when it comes to running a thriving food service business. So, where do you buy the perfect heated cabinet? Well, right here at Jean's Restaurant Supply! Our sales staff is the most knowledgeable around, and they will fit your business with the best heated cabinet for you.
One of our best units is the Traulsen AHF132WP-HHG reach-in/pass-thru heated holding cabinet. Its exterior is constructed of stainless steel that is resistant to rust and corrosion. Its cabinet and doors contain high density, non-CFC, foamed in place polyurethane insulation. The interior is constructed of corrosion resistant anodized aluminum with an arrangement of three wire shelves per section that shine under the interior lights. Each shelf has a recommended limit of 225 lbs., which gives you plenty of freedom to store all of the most important ingredients and foods you need.
This unit has one section with front and rear, half height, self-closing, glass doors. It is designed with the understanding of how hectic a busy kitchen can be. Accidentally leaving a door open will just be a terror of the past! Not only does the door self-close, but it has a stay open feature as well. If you push the door past an angle of 120 degrees, the feature will activate. This is a particularly nifty characteristic, especially when you're trying to stock up.
The standard operating temperature is 140 to 180 degrees Fahrenheit. The heat is regulated with the use of the heat resistant, vinyl magnetic door gaskets for a tight door seal. The heating system runs on a low wattage of 1500. Low velocity air is forced across a large surface area and moves the heat through a down-air distribution duct. From the distribution duct, the air is evenly distributed throughout. This creates the perfect environment for you to store all your hot foods without the fear that any of your products will dry out. Not only that, included in your purchase is a vent located at the top pf the cabinet that is used for positive humidity control.

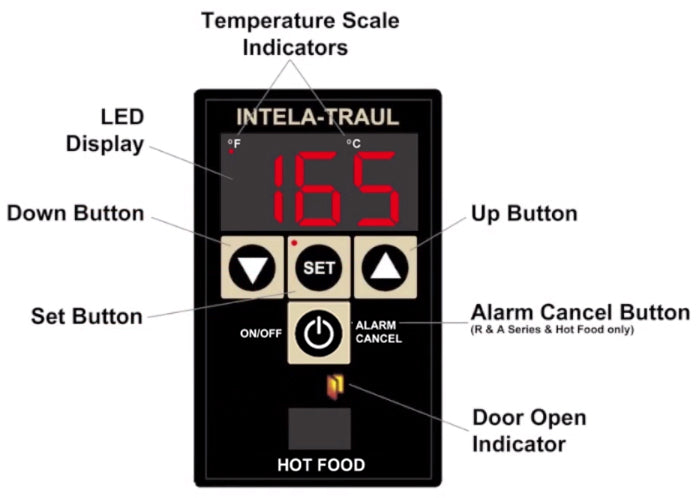

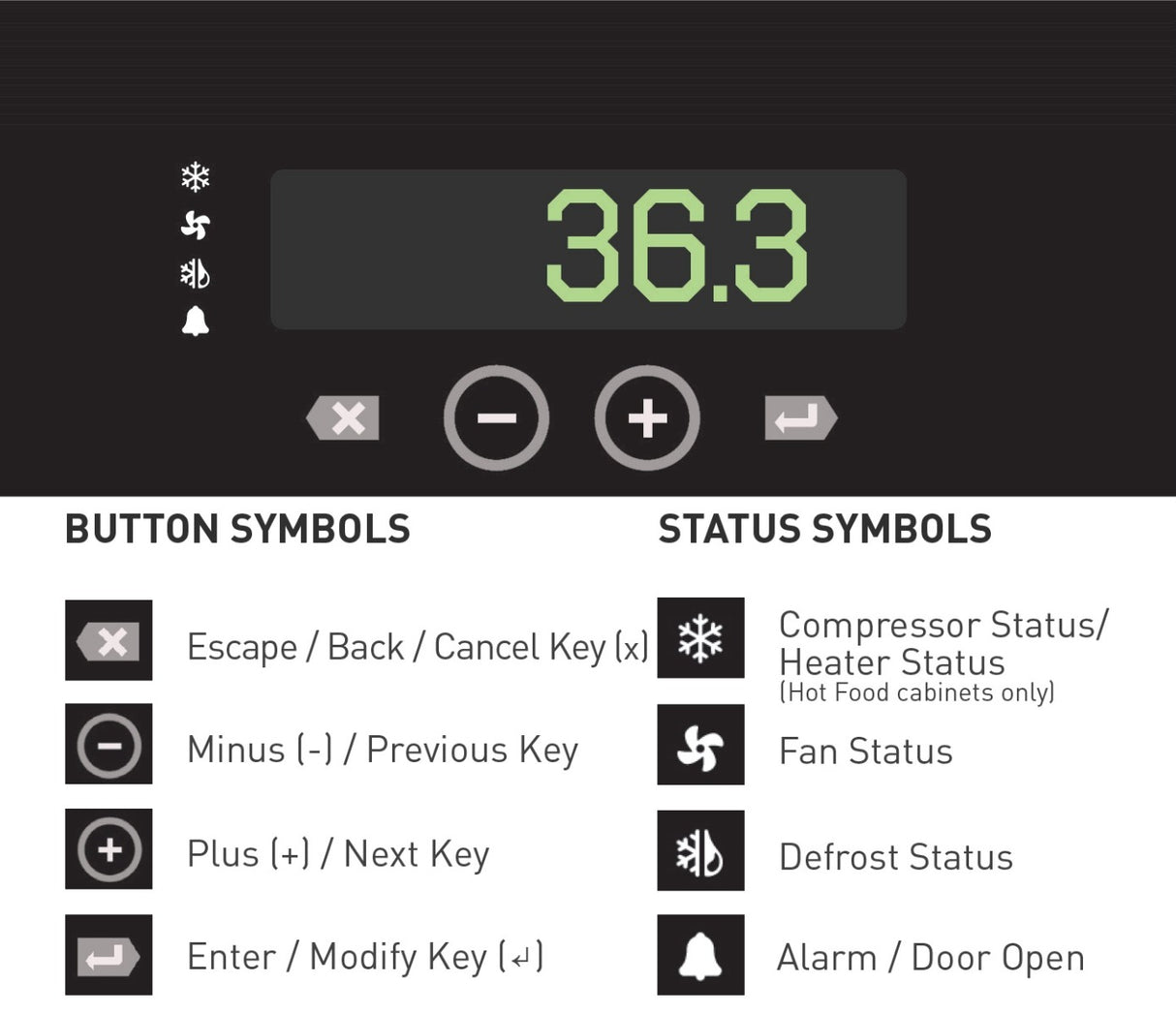

Traulsen's Smart Control™ with LED Display features advance control algorithms and sophisticated diagnostic capabilities. The Smart sensors will adapt the operation of the system to a variety of environments and usage patterns. It offers a complete set of visual alarms designed to alert the user to critical events. In the event of an alarm, a dedicated Alarm LED will illuminate, informing you of the critical event and describing the event in large, easy to read, full text display.
ON/OFF Switch Located on Control Face
Dimensions: 29-7/8"W x 39-1/16"D x 77-7/16"H plus 6"H adjustable legs
Manufacturer Details:
Spec-Line Heated Cabinet, Pass-thru, one-section, stainless steel exterior, aluminum interior, standard depth cabinet, half-height glass doors, with EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, Smart Control™, 6' adjustable stainless steel legs, cETLus, ETL-Sanitation
 |
 |
 |
 |
 |
Common Questions & Answers
How tall must my door be in order to get this unit into my kitchen?
This unit stands at an elevation of 83-7/16" in height; however, the height of a standard door is 80". It is your responsibility to measure your door before purchasing this item. However, please note that we will do all that we can to ensure this unit can get to where you need it to be.
Please don't hesitate to contact us at Jean's Restaurant Supply, it is our pleasure to serve you! Nothing will make us happier than helping your commercial kitchen succeed!
Traulsen AHF132WP-HHG Reach-In Pass-Thru Heated Holding Cabinet
All successful restaurants need a well running heated holding cabinet. Utilizing one in your restaurant will not only preserves the freshness of your food, but this product was designed to keep whatever it is that you're storing from drying out. These are both important factors when it comes to running a thriving food service business. So, where do you buy the perfect heated cabinet? Well, right here at Jean's Restaurant Supply! Our sales staff is the most knowledgeable around, and they will fit your business with the best heated cabinet for you.
One of our best units is the Traulsen AHF132WP-HHG reach-in/pass-thru heated holding cabinet. Its exterior is constructed of stainless steel that is resistant to rust and corrosion. Its cabinet and doors contain high density, non-CFC, foamed in place polyurethane insulation. The interior is constructed of corrosion resistant anodized aluminum with an arrangement of three wire shelves per section that shine under the interior lights. Each shelf has a recommended limit of 225 lbs., which gives you plenty of freedom to store all of the most important ingredients and foods you need.
This unit has one section with front and rear, half height, self-closing, glass doors. It is designed with the understanding of how hectic a busy kitchen can be. Accidentally leaving a door open will just be a terror of the past! Not only does the door self-close, but it has a stay open feature as well. If you push the door past an angle of 120 degrees, the feature will activate. This is a particularly nifty characteristic, especially when you're trying to stock up.
The standard operating temperature is 140 to 180 degrees Fahrenheit. The heat is regulated with the use of the heat resistant, vinyl magnetic door gaskets for a tight door seal. The heating system runs on a low wattage of 1500. Low velocity air is forced across a large surface area and moves the heat through a down-air distribution duct. From the distribution duct, the air is evenly distributed throughout. This creates the perfect environment for you to store all your hot foods without the fear that any of your products will dry out. Not only that, included in your purchase is a vent located at the top pf the cabinet that is used for positive humidity control.
Traulsen's Smart Control™ with LED Display features advance control algorithms and sophisticated diagnostic capabilities. The Smart sensors will adapt the operation of the system to a variety of environments and usage patterns. It offers a complete set of visual alarms designed to alert the user to critical events. In the event of an alarm, a dedicated Alarm LED will illuminate, informing you of the critical event and describing the event in large, easy to read, full text display.
ON/OFF Switch Located on Control Face
Dimensions: 29-7/8"W x 39-1/16"D x 77-7/16"H plus 6"H adjustable legs
Manufacturer Details:
Spec-Line Heated Cabinet, Pass-thru, one-section, stainless steel exterior, aluminum interior, standard depth cabinet, half-height glass doors, with EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, Smart Control™, 6' adjustable stainless steel legs, cETLus, ETL-Sanitation
|
|
|
|
|
Common Questions & Answers
How tall must my door be in order to get this unit into my kitchen?
This unit stands at an elevation of 83-7/16" in height; however, the height of a standard door is 80". It is your responsibility to measure your door before purchasing this item. However, please note that we will do all that we can to ensure this unit can get to where you need it to be.
Please don't hesitate to contact us at Jean's Restaurant Supply, it is our pleasure to serve you! Nothing will make us happier than helping your commercial kitchen succeed!
Specifications
Specifications
Sold By
1/Each
Manufacturer
Traulsen
Model Number
AHF132WP-HHG
Cabinet Size
Full Height
Width
29-7/8"
Depth
39-1/16"
Height
83-7/16"
Interior Width
21-1/8"
Interior Depth
32"
Interior Height
27-1/8" Top & Bottom
Capacity
25.73 cu. ft.
Passage Type
Pass-Thru
Series
Spec-Line A-Series
Type
Holding Cabinet
Installation Type
Freestanding
Exterior Finish
Stainless steel
Interior Finish
Aluminum
Sections
1
Access Type
Door
Door Qty
2 Front / 2 Rear
Door Style
Swing
Door Type
Glass
Door Size
Front Half / Rear Half Height
Hinge Side
Front Right / Rear Right
Interior Configuration
Shelves
Number of Shelves
3
Shelf Type
Wire
Casters
Optional
Number of Legs
4
Leg Size
6" Adjustable
Leg Material
Stainless Steel
Compressor Location
Top Mounted
Temperature Range
140 to 180 Degrees F
Insulated
Yes
Control Type
Smart Control
Volt/Hz/Ph
208/115v/60/1
Amps
7.7 Amps
Wattage
1500 Watts
Plug Type
NEMA L14-20P (one section models with 208v only)
Cord Length
9 ft.
NSF Listed
Yes
USA Made
Yes
Warranty
6 year parts and labor, standard
Warranty Disclaimer
RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
Resources
Resources
Video
Video
Description
Traulsen AHF132WP-HHG Reach-In Pass-Thru Heated Holding Cabinet
All successful restaurants need a well running heated holding cabinet. Utilizing one in your restaurant will not only preserves the freshness of your food, but this product was designed to keep whatever it is that you're storing from drying out. These are both important factors when it comes to running a thriving food service business. So, where do you buy the perfect heated cabinet? Well, right here at Jean's Restaurant Supply! Our sales staff is the most knowledgeable around, and they will fit your business with the best heated cabinet for you.
One of our best units is the Traulsen AHF132WP-HHG reach-in/pass-thru heated holding cabinet. Its exterior is constructed of stainless steel that is resistant to rust and corrosion. Its cabinet and doors contain high density, non-CFC, foamed in place polyurethane insulation. The interior is constructed of corrosion resistant anodized aluminum with an arrangement of three wire shelves per section that shine under the interior lights. Each shelf has a recommended limit of 225 lbs., which gives you plenty of freedom to store all of the most important ingredients and foods you need.
This unit has one section with front and rear, half height, self-closing, glass doors. It is designed with the understanding of how hectic a busy kitchen can be. Accidentally leaving a door open will just be a terror of the past! Not only does the door self-close, but it has a stay open feature as well. If you push the door past an angle of 120 degrees, the feature will activate. This is a particularly nifty characteristic, especially when you're trying to stock up.
The standard operating temperature is 140 to 180 degrees Fahrenheit. The heat is regulated with the use of the heat resistant, vinyl magnetic door gaskets for a tight door seal. The heating system runs on a low wattage of 1500. Low velocity air is forced across a large surface area and moves the heat through a down-air distribution duct. From the distribution duct, the air is evenly distributed throughout. This creates the perfect environment for you to store all your hot foods without the fear that any of your products will dry out. Not only that, included in your purchase is a vent located at the top pf the cabinet that is used for positive humidity control.
Traulsen's Smart Control™ with LED Display features advance control algorithms and sophisticated diagnostic capabilities. The Smart sensors will adapt the operation of the system to a variety of environments and usage patterns. It offers a complete set of visual alarms designed to alert the user to critical events. In the event of an alarm, a dedicated Alarm LED will illuminate, informing you of the critical event and describing the event in large, easy to read, full text display.
ON/OFF Switch Located on Control Face
Dimensions: 29-7/8"W x 39-1/16"D x 77-7/16"H plus 6"H adjustable legs
Manufacturer Details:
Spec-Line Heated Cabinet, Pass-thru, one-section, stainless steel exterior, aluminum interior, standard depth cabinet, half-height glass doors, with EZ-Clean Gaskets, (3) clear coated adjustable shelves per section, Smart Control™, 6' adjustable stainless steel legs, cETLus, ETL-Sanitation
|
|
|
|
|
Common Questions & Answers
How tall must my door be in order to get this unit into my kitchen?
This unit stands at an elevation of 83-7/16" in height; however, the height of a standard door is 80". It is your responsibility to measure your door before purchasing this item. However, please note that we will do all that we can to ensure this unit can get to where you need it to be.
Please don't hesitate to contact us at Jean's Restaurant Supply, it is our pleasure to serve you! Nothing will make us happier than helping your commercial kitchen succeed!
Specifications
Sold By
1/Each
Manufacturer
Traulsen
Model Number
AHF132WP-HHG
Cabinet Size
Full Height
Width
29-7/8"
Depth
39-1/16"
Height
83-7/16"
Interior Width
21-1/8"
Interior Depth
32"
Interior Height
27-1/8" Top & Bottom
Capacity
25.73 cu. ft.
Passage Type
Pass-Thru
Series
Spec-Line A-Series
Type
Holding Cabinet
Installation Type
Freestanding
Exterior Finish
Stainless steel
Interior Finish
Aluminum
Sections
1
Access Type
Door
Door Qty
2 Front / 2 Rear
Door Style
Swing
Door Type
Glass
Door Size
Front Half / Rear Half Height
Hinge Side
Front Right / Rear Right
Interior Configuration
Shelves
Number of Shelves
3
Shelf Type
Wire
Casters
Optional
Number of Legs
4
Leg Size
6" Adjustable
Leg Material
Stainless Steel
Compressor Location
Top Mounted
Temperature Range
140 to 180 Degrees F
Insulated
Yes
Control Type
Smart Control
Volt/Hz/Ph
208/115v/60/1
Amps
7.7 Amps
Wattage
1500 Watts
Plug Type
NEMA L14-20P (one section models with 208v only)
Cord Length
9 ft.
NSF Listed
Yes
USA Made
Yes
Warranty
6 year parts and labor, standard
Warranty Disclaimer
RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
