Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door 10" x 6"
Component Hardware | SKU:
2339
1
of
8
Loading...
$94.56
Unit price /
Unavailable
Couldn't load pickup availability
Ships in 1-3 business days
Financing
Financing
Financing info
Description
Description

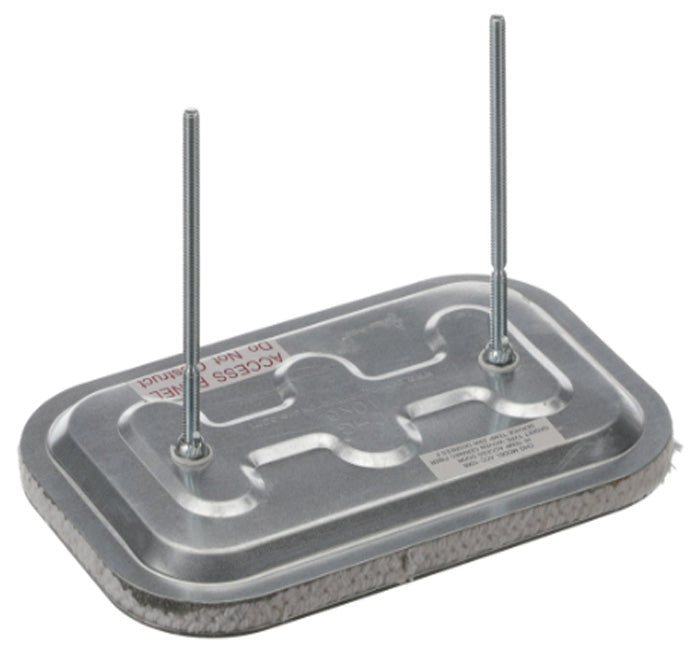

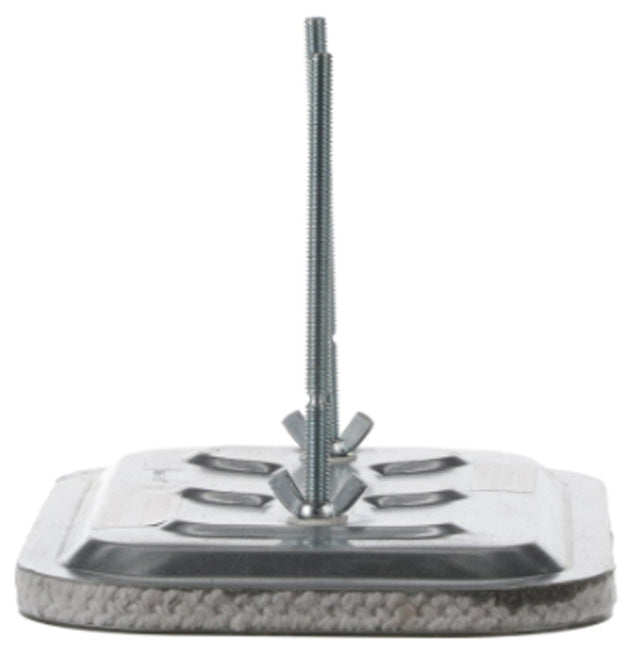

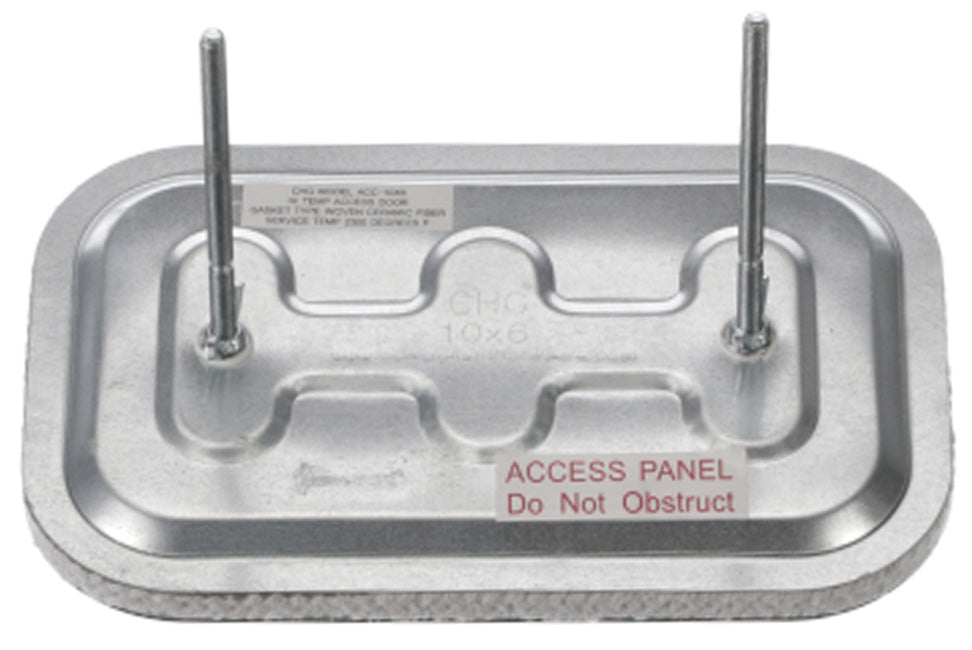

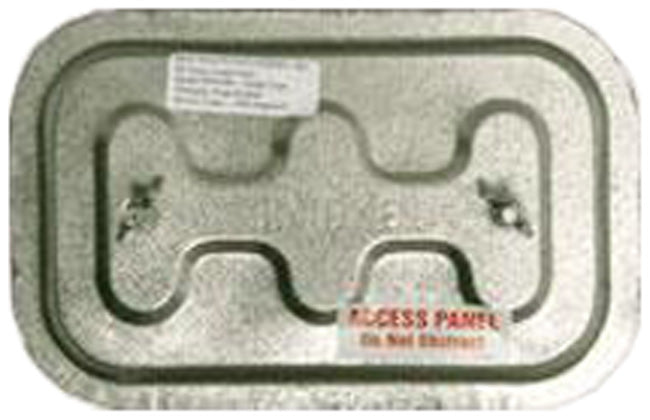

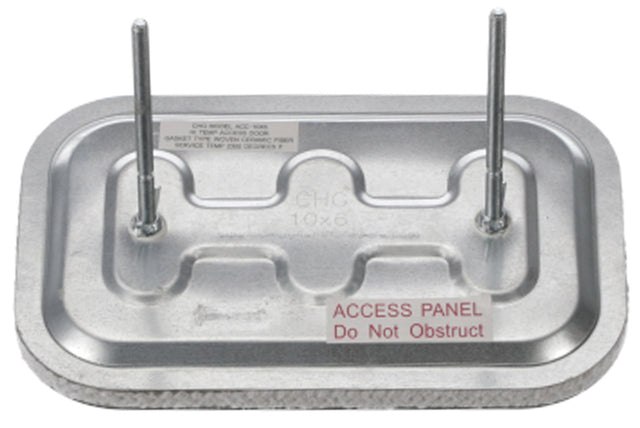

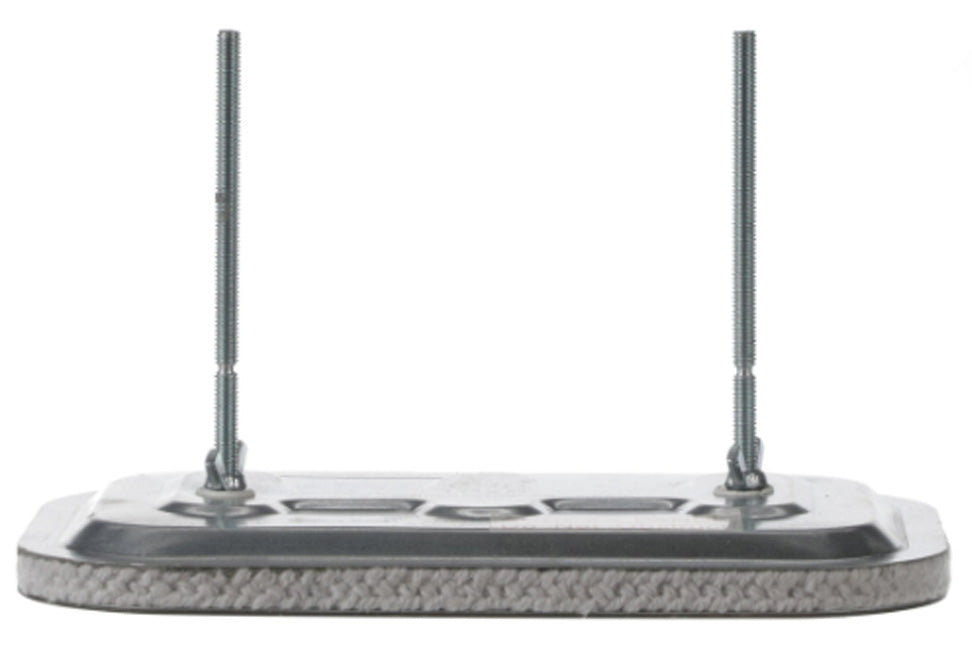

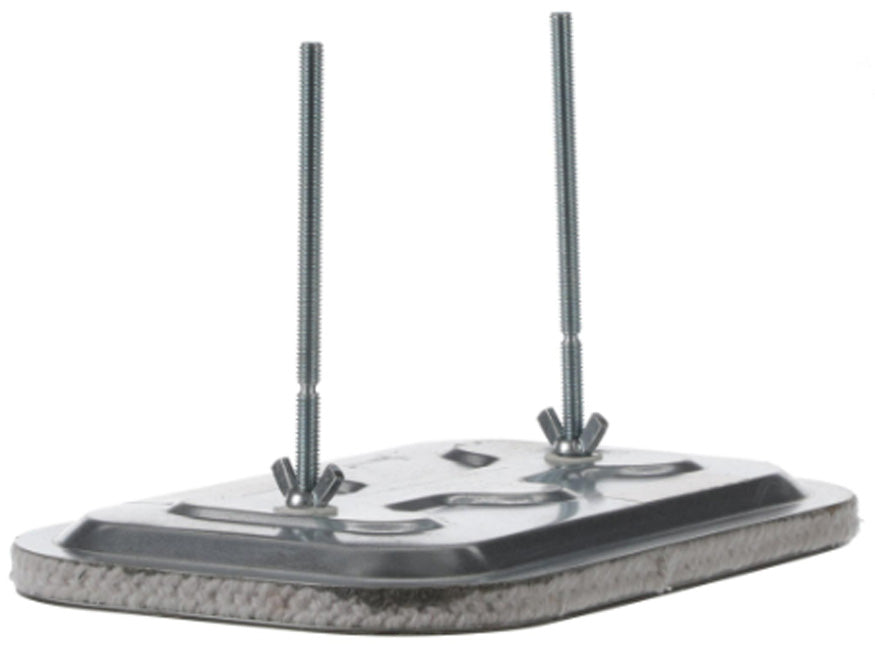

Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door
10" x 6" High Temperature Access Door Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening Zinc coated wing nuts are easily turned by hand No measuring needed - self-adhesive mounting template provided Easy to install 6" (152mm) break-away mounting studs permit installations with fire wrap insulation. Studs may be broken at 2" (102mm) for standard installations. Meets NFPA #96 Standards
- 2300F RECTANGULAR SHAPE
- Duct work cleanout cover
- Custom fabrication
Hi-Temp Access Door, high-temp gasket rated to 2300°F, 10" x 6" normal size
Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door
10" x 6" High Temperature Access Door Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening Zinc coated wing nuts are easily turned by hand No measuring needed - self-adhesive mounting template provided Easy to install 6" (152mm) break-away mounting studs permit installations with fire wrap insulation. Studs may be broken at 2" (102mm) for standard installations. Meets NFPA #96 Standards
- 2300F RECTANGULAR SHAPE
- Duct work cleanout cover
- Custom fabrication
Hi-Temp Access Door, high-temp gasket rated to 2300°F, 10" x 6" normal size
Specifications
Specifications
Sold By
1/Each
Manufacturer
Component Hardware
Model Number
ACC-10X6
Dimensions
10" x 6"
Height
Stud Height: 6"
Type
Grease Duct Access Door
Material
Zinc Plated Steel
Secondary Material: Iron
Secondary Material: Iron
Description
Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door
10" x 6" High Temperature Access Door Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening Zinc coated wing nuts are easily turned by hand No measuring needed - self-adhesive mounting template provided Easy to install 6" (152mm) break-away mounting studs permit installations with fire wrap insulation. Studs may be broken at 2" (102mm) for standard installations. Meets NFPA #96 Standards
- 2300F RECTANGULAR SHAPE
- Duct work cleanout cover
- Custom fabrication
Hi-Temp Access Door, high-temp gasket rated to 2300°F, 10" x 6" normal size
Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door
10" x 6" High Temperature Access Door Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening Zinc coated wing nuts are easily turned by hand No measuring needed - self-adhesive mounting template provided Easy to install 6" (152mm) break-away mounting studs permit installations with fire wrap insulation. Studs may be broken at 2" (102mm) for standard installations. Meets NFPA #96 Standards
- 2300F RECTANGULAR SHAPE
- Duct work cleanout cover
- Custom fabrication
Hi-Temp Access Door, high-temp gasket rated to 2300°F, 10" x 6" normal size
Specifications
Sold By
1/Each
Manufacturer
Component Hardware
Model Number
ACC-10X6
Dimensions
10" x 6"
Height
Stud Height: 6"
Type
Grease Duct Access Door
Material
Zinc Plated Steel
Secondary Material: Iron
Secondary Material: Iron
