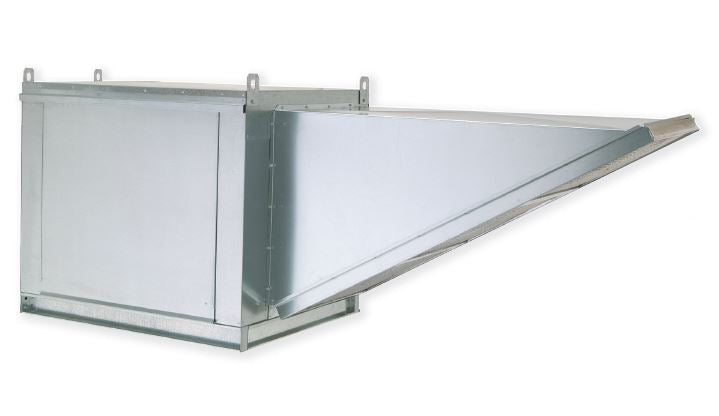

JRSVH12-PFF KIT 12' Jeans Canopy Vent Hood with Plenum, Exhaust Fan, and Make-up Air Fan
Jean's RS | SKU:
253088
1
of
4
Loading...
$6,264.71
Unit price /
Unavailable
Couldn't load pickup availability
SHIPS IN 1-3 BUSINESS DAYS
Special Order
Financing
Financing
Financing info
Description
Description
JRSVH12-PFF - 12ft Long Exhaust-Only Wall Canopy Hood with Front Perforated Supply Plenum with Built-in 3" Back Standoff
- 430 SS Where Exposed
- 9 - FILTERS - 16" tall x 16" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- 4 - L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others
- 2 - EXHAUST RISER - Factory installed 16" Diameter X 4" Height
- 3- SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers
- 2 - 1/2 Pint Grease Cup New Style, Flanged Slotted
- Bulbs By Others
Exhaust Fan Specifications
High Speed Direct Drive Centrifugal Upblast Exhaust Fan with 18.75" wheel.
- Exhaust Fan handles 2700 CFM @ -1.000" wc ESP, Fan runs at 1111 RPM.
- Exhaust Motor: 1.500 HP, 3 Phs, 208 V, 60Hz, 6.5 FLA, TEFC, Premium (E-Plus3) Eff.
- Variable Frequency Drive factory mounted wired and programmed.
Supply Fan Specifications
Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
- Supply Fan handles 2160 CFM @ 0.500" wc ESP, Fan runs at 940 RPM.
- Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)
- Down Discharge - Air Flow Right -> Left
- 2 Flat Roof Curb Flashing
Note: Call for curb design and price on sloped/not flat roof.
 |
 |
JRSVH12-PFF - 12ft Long Exhaust-Only Wall Canopy Hood with Front Perforated Supply Plenum with Built-in 3" Back Standoff
- 430 SS Where Exposed
- 9 - FILTERS - 16" tall x 16" wide Kleen-Gard Stainless Steel Baffle Filter with Handles and Bottom Hanging Hook, UL Classified
- 4 - L55 Series E26 Canopy Light Fixture - High Temp Assembly, Includes Clear Thermal and Shock Resistant Globe (L55 Fixture), Bulbs By Others
- 2 - EXHAUST RISER - Factory installed 16" Diameter X 4" Height
- 3- SUPPLY RISER - 12"x 28" Supply Riser with Volume Dampers
- 2 - 1/2 Pint Grease Cup New Style, Flanged Slotted
- Bulbs By Others
Exhaust Fan Specifications
High Speed Direct Drive Centrifugal Upblast Exhaust Fan with 18.75" wheel.
- Exhaust Fan handles 2700 CFM @ -1.000" wc ESP, Fan runs at 1111 RPM.
- Exhaust Motor: 1.500 HP, 3 Phs, 208 V, 60Hz, 6.5 FLA, TEFC, Premium (E-Plus3) Eff.
- Variable Frequency Drive factory mounted wired and programmed.
Supply Fan Specifications
Direct Drive Untempered Supply Unit with 10" Blower in Size #1 Housing with speed control, disconnect switch.
- Supply Fan handles 2160 CFM @ 0.500" wc ESP, Fan runs at 940 RPM.
- Supply Motor: 1.000 HP, 1 Phase, 115 V, 60Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor)
- Down Discharge - Air Flow Right -> Left
- 2 Flat Roof Curb Flashing
Note: Call for curb design and price on sloped/not flat roof.
|
|
Specifications
Specifications
Sold By
1/Each
Manufacturer
Jean's RS
Model Number
JRSVH12-PFF
Width
12 ft.
NSF Listed
Yes
USA Made
Yes
