CaptiveAire A1-15D-MPU Makeup Air Supply Fan -1100 CFM - 1329 RPM - 115v/1-ph
CaptiveAire | SKU:
1
of
2
Loading...
$10,000.00
Unit price /
Unavailable
Couldn't load pickup availability
In stock
SHIPS IN 1-3 BUSINESS DAYS
Corpus Christi Store: 1 in stock
McAllen Store: 0 in stock
Description
Description

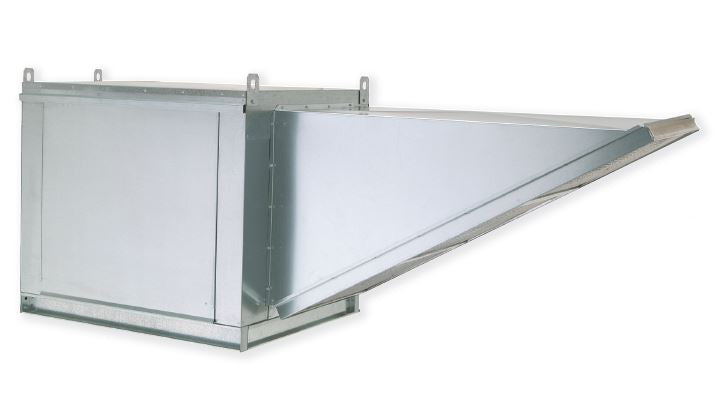

CaptiveAire A1-15D-MPU Makeup Air Supply Fan
Supply Unit with 15" Mixed Flow Direct Drive Fan in Size #1 Housing Supply Fan handles 1100 CFM @ 0.500" wc ESP, Fan runs at 1329 RPM. Supply Motor: 1.000 HP, 1 Phs, 115 V, 60 Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left
- Sloped Filtered Intake for Size #1 Modular Untempered Supply Unit.
21.813" Wide x 44.375" Long x 23.375" High.
Includes 2" MV EZ Kleen Metal Mesh Filters.
- Insulated Blower Housing Sizes 1-2 Commercial Modular
- Motorized Back Draft Damper 16" x 18" for Size 1 Untempered Units w/Extended Shaft, Standard Galvanized Construction, 3/4" Rear Flange, Low Leakage, TFB120S Actuator Included
- Support shell for Size 1 Modular Package Unit. Includes control vestibule. Includes condenser supports. Does not include return air or inlet air damper.
- ECM Wiring Package for supply motors with PWM signal from ECPM03 prewire.
- Down Discharge Construction for Size 1 Untempered Direct Drive AHUs
- 3 Ton, Single Circuit Modular Packaged Cooling Option for Size 1 Modular Packaged Unit.
Includes Condenser, DX Coil, Filter/Dryer Kit, Hard Start Kit, Thermal Expansion Valve, R410A Refrigerant, and Refrigerant Piping. (1,100 to 1,800 cfm) When ordered with opposite airflow condensers access and coil piping will remain in standard position. Drain and sleds will move to the opposite side. Any other change will require CLI. CONDENSERS REQUIRE SEPARATE 208V, 1 PHASE POWER SUPPLY UNLESS ORDERED WITH SINGLE POINT CONNECTION. Coil = 2EZ1001N
- Control Package for Mod Package Unit Cooling Only Unit.
Includes airflow proving switch, RTUlink-ACHP board and terminal blocks.
CaptiveAire A1-15D-MPU Makeup Air Supply Fan
Supply Unit with 15" Mixed Flow Direct Drive Fan in Size #1 Housing Supply Fan handles 1100 CFM @ 0.500" wc ESP, Fan runs at 1329 RPM. Supply Motor: 1.000 HP, 1 Phs, 115 V, 60 Hz, 11.6 FLA, TEAO-ECM (Totally Enclosed Air Over Electronically Commutated Motor) Down Discharge - Air Flow Right -> Left
- Sloped Filtered Intake for Size #1 Modular Untempered Supply Unit.
21.813" Wide x 44.375" Long x 23.375" High.
Includes 2" MV EZ Kleen Metal Mesh Filters.
- Insulated Blower Housing Sizes 1-2 Commercial Modular
- Motorized Back Draft Damper 16" x 18" for Size 1 Untempered Units w/Extended Shaft, Standard Galvanized Construction, 3/4" Rear Flange, Low Leakage, TFB120S Actuator Included
- Support shell for Size 1 Modular Package Unit. Includes control vestibule. Includes condenser supports. Does not include return air or inlet air damper.
- ECM Wiring Package for supply motors with PWM signal from ECPM03 prewire.
- Down Discharge Construction for Size 1 Untempered Direct Drive AHUs
- 3 Ton, Single Circuit Modular Packaged Cooling Option for Size 1 Modular Packaged Unit.
Includes Condenser, DX Coil, Filter/Dryer Kit, Hard Start Kit, Thermal Expansion Valve, R410A Refrigerant, and Refrigerant Piping. (1,100 to 1,800 cfm) When ordered with opposite airflow condensers access and coil piping will remain in standard position. Drain and sleds will move to the opposite side. Any other change will require CLI. CONDENSERS REQUIRE SEPARATE 208V, 1 PHASE POWER SUPPLY UNLESS ORDERED WITH SINGLE POINT CONNECTION. Coil = 2EZ1001N
- Control Package for Mod Package Unit Cooling Only Unit.
Includes airflow proving switch, RTUlink-ACHP board and terminal blocks.
Specifications
Sold By
1/Each
Manufacturer
CaptiveAire
Model Number
A1-15D-MPU
Type
Makeup Air Supply Fan
Warranty
1 year parts only warranty
Warranty Disclaimer
RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
