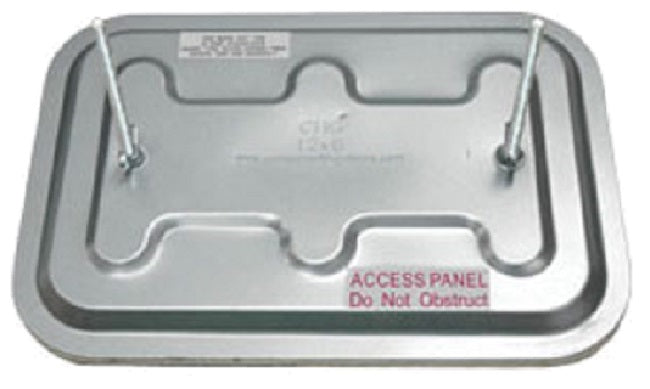

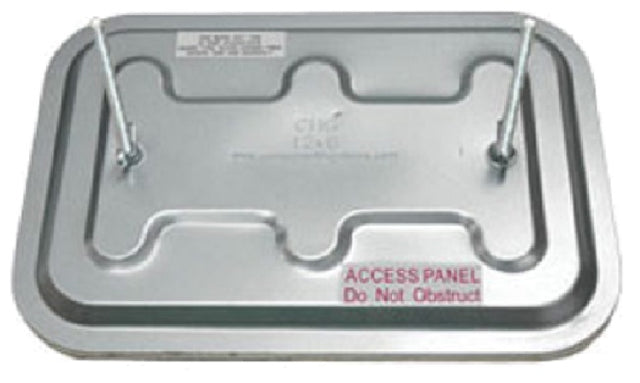

Component Hardware ACC-12X8 Hi-Temp Cleanout Grease Duct Access Door 12" x 8"
Component Hardware | SKU:
2340
Loading...
$90.00
Unit price /
Unavailable
Couldn't load pickup availability
SHIPS IN 1-3 BUSINESS DAYS
Financing
Financing
Financing info
Description
Description
Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door
- 12" x 8" High Temperature Access Door
- Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability
- Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage
- Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening
- Zinc coated wing nuts are easily turned by hand
- No measuring needed - self-adhesive mounting template provided
- Easy to install
- 6" (152mm) break-away mounting studs permit installations with fire wrap insulation
- Studs may be broken at 2" (102mm) for standard installations.
- Meets NFPA #96 Standards
Manufacturer Details:
Hi-Temp Access Door, high-temp gasket rated to 2300°F, 12" x 8" normal size
Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door
- 12" x 8" High Temperature Access Door
- Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability
- Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage
- Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening
- Zinc coated wing nuts are easily turned by hand
- No measuring needed - self-adhesive mounting template provided
- Easy to install
- 6" (152mm) break-away mounting studs permit installations with fire wrap insulation
- Studs may be broken at 2" (102mm) for standard installations.
- Meets NFPA #96 Standards
Manufacturer Details:
Hi-Temp Access Door, high-temp gasket rated to 2300°F, 12" x 8" normal size
Specifications
Specifications
Sold By
1/Each
Manufacturer
Component Hardware
Model Number
ACC-12X8
Dimensions
12" x 8"
Height
Stud Height: 6"
Type
Grease Duct Access Door
Material
Zinc Plated Steel
Secondary Material: Iron
Secondary Material: Iron
Description
Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door
- 12" x 8" High Temperature Access Door
- Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability
- Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage
- Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening
- Zinc coated wing nuts are easily turned by hand
- No measuring needed - self-adhesive mounting template provided
- Easy to install
- 6" (152mm) break-away mounting studs permit installations with fire wrap insulation
- Studs may be broken at 2" (102mm) for standard installations.
- Meets NFPA #96 Standards
Manufacturer Details:
Hi-Temp Access Door, high-temp gasket rated to 2300°F, 12" x 8" normal size
Component Hardware ACC-10X6 Hi-Temp Grease Duct Access Door
- 12" x 8" High Temperature Access Door
- Leak resistant and consists of two layers of stamped, hot dipped galvanized steel and one 16 g. black iron backing plate for ultimate safety and durability
- Hi-Temperature Ceramic Fiber Gasket (2300°F, 1260°C max) is permanently bonded to the outside panel of the access door to eliminate leakage
- Zinc plated conical springs are installed, between inner and outer plates, to facilitate opening
- Zinc coated wing nuts are easily turned by hand
- No measuring needed - self-adhesive mounting template provided
- Easy to install
- 6" (152mm) break-away mounting studs permit installations with fire wrap insulation
- Studs may be broken at 2" (102mm) for standard installations.
- Meets NFPA #96 Standards
Manufacturer Details:
Hi-Temp Access Door, high-temp gasket rated to 2300°F, 12" x 8" normal size
Specifications
Sold By
1/Each
Manufacturer
Component Hardware
Model Number
ACC-12X8
Dimensions
12" x 8"
Height
Stud Height: 6"
Type
Grease Duct Access Door
Material
Zinc Plated Steel
Secondary Material: Iron
Secondary Material: Iron
