EconAir DU50HFA-900-1600 Wall Mount High Speed Direct Drive Centrifugal Upblast Exhaust Fan 1200 CFM - 1133 RPM - 115v
EconAir | SKU:
275917
1
of
5
Loading...
$863.70
Unit price /
Unavailable
Couldn't load pickup availability
In stock
SHIPS IN 1-3 BUSINESS DAYS
Corpus Christi Store: 1 in stock
McAllen Store: 0 in stock
Description
Description
EconAir DU50HFA-900-1600 Wall Mount High Speed Direct Drive Centrifugal Upblast Exhaust Fan with Speed Control
DU50HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (speed control included for single phase only), disconnect switch and 13-3/4" wheel.
Exhaust Fan handles 1200 CFM @ -0.250" wc ESP, Fan runs at 1133 RPM.
Exhaust Motor: 0.500 HP, 1 Phs, 115 V, 60Hz, 8.4 FLA, ODP (Open Drip Proof)

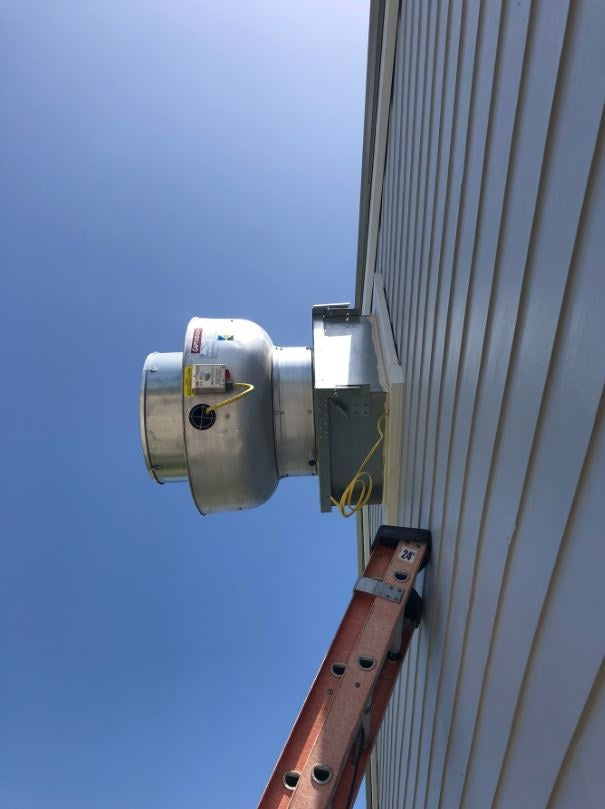

- Wall Mount Construction for Direct Drive Fan. Through-Bolt mount motor for extra support in wall mount application. Vibration isolator mounts not used.
Ship out dimensions FAN ONLY:
43"L x 43"Wx 42"H
EconAir DU50HFA-900-1600 Wall Mount High Speed Direct Drive Centrifugal Upblast Exhaust Fan with Speed Control
DU50HFA High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (speed control included for single phase only), disconnect switch and 13-3/4" wheel.
Exhaust Fan handles 1200 CFM @ -0.250" wc ESP, Fan runs at 1133 RPM.
Exhaust Motor: 0.500 HP, 1 Phs, 115 V, 60Hz, 8.4 FLA, ODP (Open Drip Proof)
- Wall Mount Construction for Direct Drive Fan. Through-Bolt mount motor for extra support in wall mount application. Vibration isolator mounts not used.
Ship out dimensions FAN ONLY:
43"L x 43"Wx 42"H
Specifications
Sold By
1/Each
Manufacturer
EconAir
Model Number
DU50HFA-900-1600
Width
28-7/8"
Height
27-1/4"
Base Width
21"
Style
High Speed Direct Drive Centrifugal Upblast
Type
Exhaust Fan
Installation Type
Wall Mounted
Features
Disconnect switch and 13−3/4" wheel
Material
Heavy-Duty Aluminum
Base Style
19-1/2" x 19-1/2" Flashing
Horsepower
1/2 HP
Volt/Hz/Ph
115v/60/1
Amps
8.4 Amps
RPM
1133 RPM
CFM
1200 CFM
USA Made
Yes
Warranty
1 year parts only warranty
Warranty Disclaimer
RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
Specifications
Specifications
Sold By
1/Each
Manufacturer
EconAir
Model Number
DU50HFA-900-1600
Width
28-7/8"
Height
27-1/4"
Base Width
21"
Style
High Speed Direct Drive Centrifugal Upblast
Type
Exhaust Fan
Installation Type
Wall Mounted
Features
Disconnect switch and 13−3/4" wheel
Material
Heavy-Duty Aluminum
Base Style
19-1/2" x 19-1/2" Flashing
Horsepower
1/2 HP
Volt/Hz/Ph
115v/60/1
Amps
8.4 Amps
RPM
1133 RPM
CFM
1200 CFM
USA Made
Yes
Warranty
1 year parts only warranty
Warranty Disclaimer
RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
