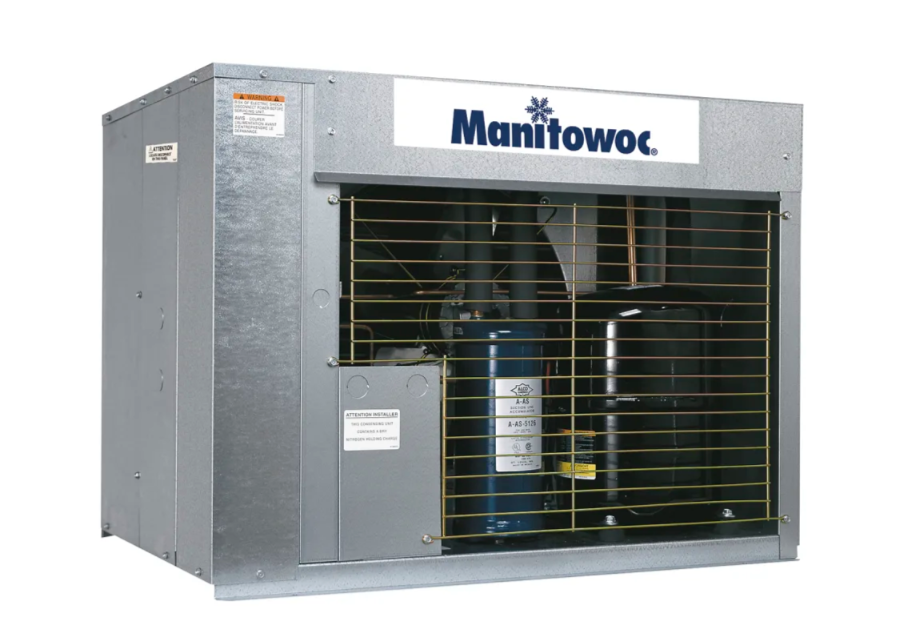

Manitowoc CVDF3000 Air Cooled Remote Condensing Unit for SF-3000C Series
Manitowoc | SKU:
277623
Loading...
$5,365.29
Unit price /
Unavailable
Couldn't load pickup availability
Ships in 1-3 business days
Special Order
Financing
Financing
Financing info
Description
Description
Manitowoc Ice CVDF3000 Description
CVD® (Cool Vapor Defrost) technology is basically a different type of ice harvest system that allows Manitowoc to move the compressor out of the customer environment. Standard remote condenser ice machines all use compressor hot gas systems to heat the evaporator during their ice harvest cycles. To make hot gas systems work, the compressor must be as physically close to the ice making evaporator as possible. This also means the noise from the compressor is always concentrated at the ice making part of the system. This is not something you want in a customer environment.
Manitowoc CVD ice machines use vapor refrigerant from the receiver tank to harvest the ice. The receiver tank is a refrigerant storage tank typically used on all remote ice machines and can be a source of vapor refrigerant for a harvest cycle if the system is configured correctly. CVD systems all use large capacity refrigerant accumulators for maximum compressor protection under any operating condition. Compressor and condenser heat and noise is always located outside away from the customer environment.
It not only makes QuietQube ice machines the quietest ever; it makes them more reliable, makes them efficient, and provides high levels of ice production too.
Product Details
- Remote Air-Cooled Condenser
- Color: Silver
- Shape: Rectangular
- Electrical Specifications: 208-230V/60Hz/3-ph
- Horsepower: 5.5
- Amps: 30
- Compatible w/ S-3070C Seris QuietQube Ice Machines
- NSF Listed
- cULus Listed
- AHRI Certified
 |
 |
 |
 |
Common Questions & Answers
What are the electric specifications?
It has a standard of 208-230/60/3 volts, 60 hertz, and is single phase, other options are available.
What is the operating limitations?
It requires ambient temperature range in between 50 to 110 degrees Fahrenheit. The ambient water temperature range must be in between 37 to 90 degrees Fahrenheit.
What is the type of refrigerant that must be used?
R-404A
If you have any questions, please give us a call at Jean's Restaurant Supply and one of our highly educated sales representatives will give you all the information you need. It is our pleasure to serve you and nothing will make us happier than helping you succeed.
Manitowoc Ice CVDF3000 Description
CVD® (Cool Vapor Defrost) technology is basically a different type of ice harvest system that allows Manitowoc to move the compressor out of the customer environment. Standard remote condenser ice machines all use compressor hot gas systems to heat the evaporator during their ice harvest cycles. To make hot gas systems work, the compressor must be as physically close to the ice making evaporator as possible. This also means the noise from the compressor is always concentrated at the ice making part of the system. This is not something you want in a customer environment.
Manitowoc CVD ice machines use vapor refrigerant from the receiver tank to harvest the ice. The receiver tank is a refrigerant storage tank typically used on all remote ice machines and can be a source of vapor refrigerant for a harvest cycle if the system is configured correctly. CVD systems all use large capacity refrigerant accumulators for maximum compressor protection under any operating condition. Compressor and condenser heat and noise is always located outside away from the customer environment.
It not only makes QuietQube ice machines the quietest ever; it makes them more reliable, makes them efficient, and provides high levels of ice production too.
Product Details
- Remote Air-Cooled Condenser
- Color: Silver
- Shape: Rectangular
- Electrical Specifications: 208-230V/60Hz/3-ph
- Horsepower: 5.5
- Amps: 30
- Compatible w/ S-3070C Seris QuietQube Ice Machines
- NSF Listed
- cULus Listed
- AHRI Certified
|
|
|
|
Common Questions & Answers
What are the electric specifications?
It has a standard of 208-230/60/3 volts, 60 hertz, and is single phase, other options are available.
What is the operating limitations?
It requires ambient temperature range in between 50 to 110 degrees Fahrenheit. The ambient water temperature range must be in between 37 to 90 degrees Fahrenheit.
What is the type of refrigerant that must be used?
R-404A
If you have any questions, please give us a call at Jean's Restaurant Supply and one of our highly educated sales representatives will give you all the information you need. It is our pleasure to serve you and nothing will make us happier than helping you succeed.
Specifications
Specifications
Sold By
1/Each
Manufacturer
Manitowoc
Model Number
CVDF3000
Color
Silver
Dimensions
26" x 52.30" x 26"
Width
52.5"
Depth
26"
Height
26"
Description
Manitowoc Ice CVDF3000 Description
CVD® (Cool Vapor Defrost) technology is basically a different type of ice harvest system that allows Manitowoc to move the compressor out of the customer environment. Standard remote condenser ice machines all use compressor hot gas systems to heat the evaporator during their ice harvest cycles. To make hot gas systems work, the compressor must be as physically close to the ice making evaporator as possible. This also means the noise from the compressor is always concentrated at the ice making part of the system. This is not something you want in a customer environment.
Manitowoc CVD ice machines use vapor refrigerant from the receiver tank to harvest the ice. The receiver tank is a refrigerant storage tank typically used on all remote ice machines and can be a source of vapor refrigerant for a harvest cycle if the system is configured correctly. CVD systems all use large capacity refrigerant accumulators for maximum compressor protection under any operating condition. Compressor and condenser heat and noise is always located outside away from the customer environment.
It not only makes QuietQube ice machines the quietest ever; it makes them more reliable, makes them efficient, and provides high levels of ice production too.
Product Details
- Remote Air-Cooled Condenser
- Color: Silver
- Shape: Rectangular
- Electrical Specifications: 208-230V/60Hz/3-ph
- Horsepower: 5.5
- Amps: 30
- Compatible w/ S-3070C Seris QuietQube Ice Machines
- NSF Listed
- cULus Listed
- AHRI Certified
|
|
|
|
Common Questions & Answers
What are the electric specifications?
It has a standard of 208-230/60/3 volts, 60 hertz, and is single phase, other options are available.
What is the operating limitations?
It requires ambient temperature range in between 50 to 110 degrees Fahrenheit. The ambient water temperature range must be in between 37 to 90 degrees Fahrenheit.
What is the type of refrigerant that must be used?
R-404A
If you have any questions, please give us a call at Jean's Restaurant Supply and one of our highly educated sales representatives will give you all the information you need. It is our pleasure to serve you and nothing will make us happier than helping you succeed.
Manitowoc Ice CVDF3000 Description
CVD® (Cool Vapor Defrost) technology is basically a different type of ice harvest system that allows Manitowoc to move the compressor out of the customer environment. Standard remote condenser ice machines all use compressor hot gas systems to heat the evaporator during their ice harvest cycles. To make hot gas systems work, the compressor must be as physically close to the ice making evaporator as possible. This also means the noise from the compressor is always concentrated at the ice making part of the system. This is not something you want in a customer environment.
Manitowoc CVD ice machines use vapor refrigerant from the receiver tank to harvest the ice. The receiver tank is a refrigerant storage tank typically used on all remote ice machines and can be a source of vapor refrigerant for a harvest cycle if the system is configured correctly. CVD systems all use large capacity refrigerant accumulators for maximum compressor protection under any operating condition. Compressor and condenser heat and noise is always located outside away from the customer environment.
It not only makes QuietQube ice machines the quietest ever; it makes them more reliable, makes them efficient, and provides high levels of ice production too.
Product Details
- Remote Air-Cooled Condenser
- Color: Silver
- Shape: Rectangular
- Electrical Specifications: 208-230V/60Hz/3-ph
- Horsepower: 5.5
- Amps: 30
- Compatible w/ S-3070C Seris QuietQube Ice Machines
- NSF Listed
- cULus Listed
- AHRI Certified
|
|
|
|
Common Questions & Answers
What are the electric specifications?
It has a standard of 208-230/60/3 volts, 60 hertz, and is single phase, other options are available.
What is the operating limitations?
It requires ambient temperature range in between 50 to 110 degrees Fahrenheit. The ambient water temperature range must be in between 37 to 90 degrees Fahrenheit.
What is the type of refrigerant that must be used?
R-404A
If you have any questions, please give us a call at Jean's Restaurant Supply and one of our highly educated sales representatives will give you all the information you need. It is our pleasure to serve you and nothing will make us happier than helping you succeed.
Specifications
Sold By
1/Each
Manufacturer
Manitowoc
Model Number
CVDF3000
Color
Silver
Dimensions
26" x 52.30" x 26"
Width
52.5"
Depth
26"
Height
26"
Capacity
520 lb
Series
Indigo
