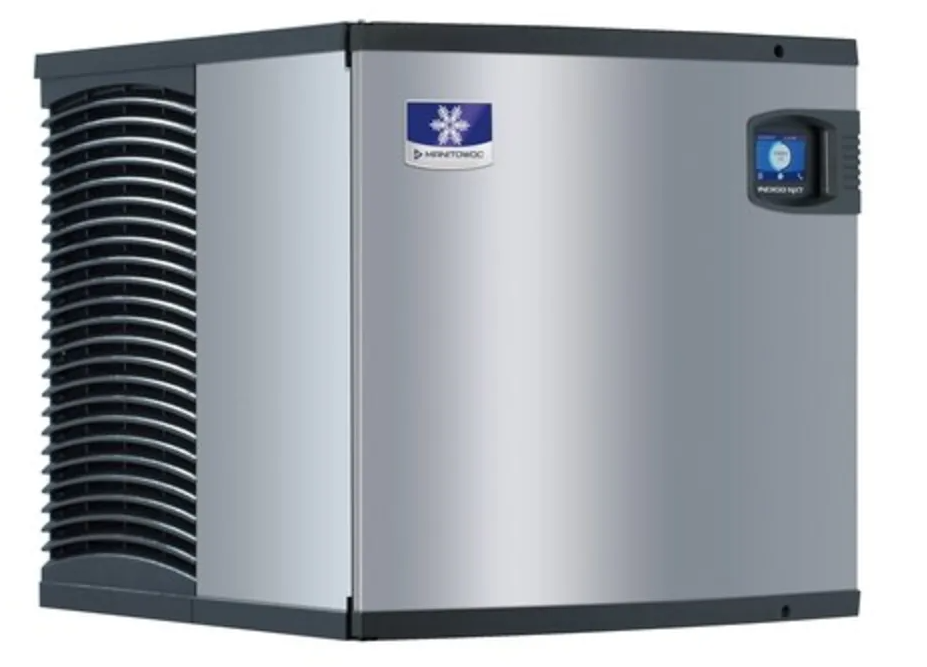

Manitowoc IDT0420A 22" Indigo NXT™ Full Cube Ice Machine Head - 470 lb/24 hr, Air Cooled, 115v
Manitowoc | SKU:
250815
Loading...
$4,351.46
Unit price /
Unavailable
Couldn't load pickup availability
Ships in 1-3 business days
Special Order
Financing
Financing
Financing info
Description
Description
Manitowoc Ice IDT0420A Description
The Manitowoc Ice IDT0420A ice maker can produce 470 pounds of ice in 24 hours. This maximum amount can only be achieved if ambient air and incoming water conditions are at an ideal level. It makes full-cube ice, which is often used for soft drinks and other fountain beverages. This unit uses air to cool the refrigerant, and when it is cold, it removes heat from the evaporator plate so water will freeze and make cubes.
This Manitowoc Ice IDT0420A full-cube ice machine head is operated through an icon-based touch screen and can be programmed to turn on and off at certain times of the day or by ice production amount. Featuring R410A refrigerant and self-diagnosis for preventative measures, this head utilizes an acoustical sensing probe to gauge how thick ice is before dispensing. With a quick-cleaning DuraTech® exterior, this unit includes a removable water trough, distribution tube, curtain, water probe, and water pump.
Product Details
- 470-lb. maximum daily ice production
- 375-lb. AHRI-certified daily ice production
- Makes full-size cube ice
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Energy efficient for low ownership cost
- Operated with easyTouch® touchscreen display
- Programmable by time and ice volume
- 24-hr. preventative maintenance and diagnosis
- Acoustical ice sensing probe detects ice density
- Removable water-trough, distribution tube, curtain, water probe, and water pump
- Foodzone accessible through swinging door
- Clear-coated, fingerprint-resistant DuraTech exterior
- R140A refrigerant
- Air-cooled, self-contained condenser
- 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
 |
 |
 |
 |
Common Questions & Answers
What are the electric specifications?
It has a standard of 115 volts, 60 hertz, and is single phase, other options are available.
What is the operating limitations?
It requires ambient temperature range in between 50 to 110 degrees Fahrenheit. The ambient water temperature range must be in between 37 to 90 degrees Fahrenheit.
What is the type of refrigerant that must be used?
R-404A
If you have any questions, please give us a call at Jean's Restaurant Supply and one of our highly educated sales representatives will give you all the information you need. It is our pleasure to serve you and nothing will make us happier than helping you succeed.
