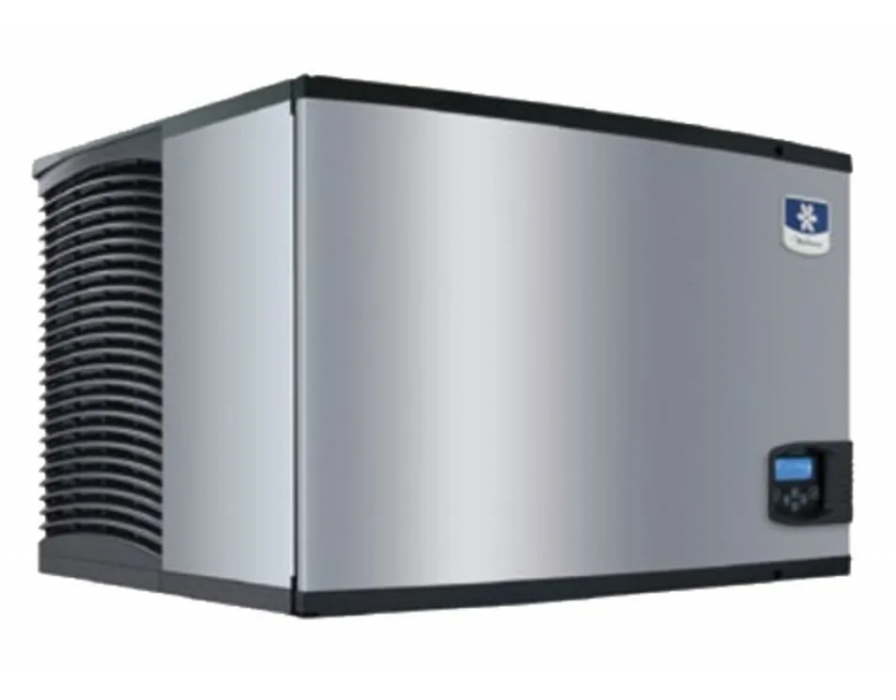

Manitowoc IDT0450A 30" Indigo NXT™ Full Cube Ice Machine Head - 470 lb/24 hr, Air Cooled, 115v
Manitowoc Ice IDT0450A Description
Programmable based on ice production volume and shut-off time, the Manitowoc Ice IDT0450A Indigo NXT™ ice machine head is controlled through a user-friendly touchscreen display. In a 24-hour cycle, it can produce 470 pounds of ice, but this amount will decrease if ambient air or incoming water temperatures are high. It makes 7⁄8-inch by 7⁄8-inch by 7⁄8-inch dice ice, a type that works well in drinks.
The stainless steel Manitowoc Ice IDT0450A ice maker is clear coated with DuraTech® to prevent dirt and fingerprints from forming on the surface. For a long service life, this unit provides 24-hour diagnostics and preventative maintenance to keep users in the know of the machine's status. Its foodzone—the section that houses components that come in contact with ice and water—is accessible through the front door for cleaning.
Product Details
- 470-lb. maximum daily ice production
- 358-lb. AHRI-certified daily ice production
- Makes ice in full-sized cubes
- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Stainless steel with DuraTech clear-coat
- Resists fingerprints and dirt
- Volume and time programmable
- Controlled with icon-based touchscreen
- Foodzone located behind hinged front door
- Removable water trough, water probe, water pump, curtain, and distribution tube
- Sensing probe for reliable operation
- 24-hr. diagnostics and preventative maintenance
- Uses R410A refrigerant
- Self-contained condenser
- 3,800-BTU average heat transfer capacity; 6,000-BTU peak heat transfer capacity
- Ideal ambient air temperature: 40-110 degrees F
- Ideal incoming water temperature: 40-90 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- Ice storage bin or dispenser is sold separately
 |
 |
 |
 |
Common Questions & Answers
What are the electric specifications?
It has a standard of 115 volts, 60 hertz, and is single phase, other options are available.
What is the operating limitations?
It requires ambient temperature range in between 50 to 110 degrees Fahrenheit. The ambient water temperature range must be in between 37 to 90 degrees Fahrenheit.
What is the type of refrigerant that must be used?
R-404A
If you have any questions, please give us a call at Jean's Restaurant Supply and one of our highly educated sales representatives will give you all the information you need. It is our pleasure to serve you and nothing will make us happier than helping you succeed.
| Sold By | 1/Each |
|---|---|
| Manufacturer | Manitowoc |
| Model No. | IDT0450A |
| Color | Silver |
| Width | 30" |
| Depth | 24" |
| Height | 21.5" |
| Series | Indigo |
| Type | Ice Machine |
| Installation Type | Modular |
| Features | Acoustical Ice Sensing Probe |
| Finish | DuraTech Metal |
| Ice Type | Full Cube |
| 24 Hour Ice Yield | 470 lb/24 hours |
| Refrigerant | R-410A |
| Condenser Type | Air Cooled |
| Water Usage | 19 Gallons per 100 lb |
| Volt/Hz/Ph | 115 Volt/ 60 Hertz |
| Amps | 11.9 |
| Warranty | Machine 3 year parts and labor - Compressor 5 year parts and 3 year labor |
| Warranty Disclaimer | RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible. |
