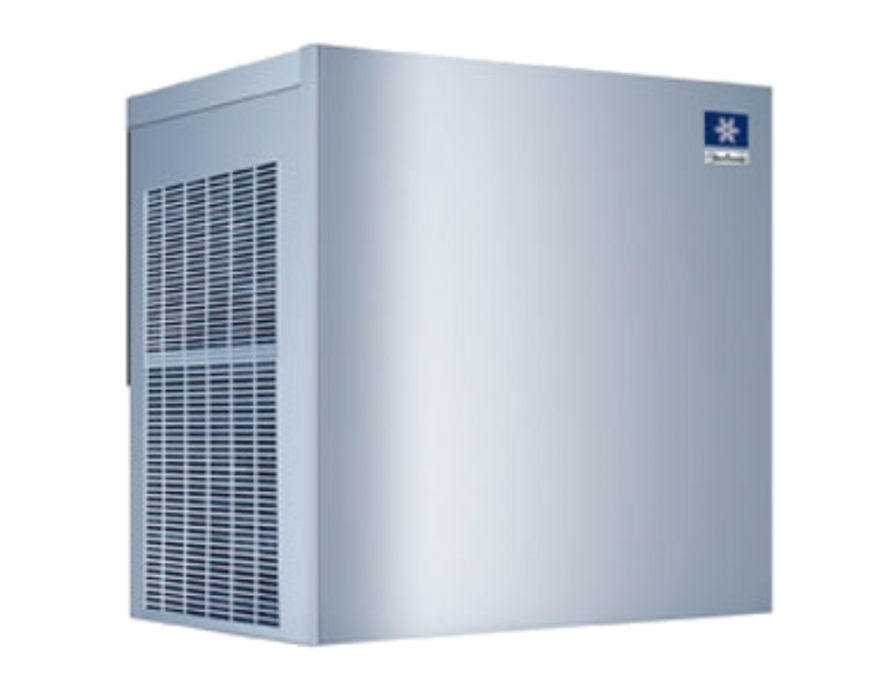

Manitowoc RFP0620W 22" Flake Ice Machine Head - 740 lb/24 hr, Water Cooled, 115v
Manitowoc Ice RFP0620W Description
The RFP0620W is the 22" wide ice machine from Manitowoc that uses a self-contained water-cooled condenser to produce up to 760 lb of slow-melting Flake-style ice per day.
This ice machine head produces the soft and slow-melting Flake-style ice that is perfect for produce and seafood displays or therapeutic use as well as for scooping into drinks. This type of ice provides efficient cooling with a 73 percent ice to water ratio.
The RFP0620W ice machine is an electrical unit that runs on 115 Volts, 60 Hz, 1-phase, and 13.5 Amps for the 1 HP compressor and it operates with R290 Hydrocarbon refrigerant.
This flake ice machine features high-load stainless steel bearings and a durable stainless steel exterior that gives a clean, modern look to any self-serve environment.
This water-cooled ice machine uses 163 Gallons of water for every 100 pounds of ice produced.
The unit is ETL-Sanitation listed for safety, CE marked, and ETL listed in the United States and Canada.
Â
Ice Maker Head Details
- 22" wide ice machine
- Ice Production: 760 lb of ice per day
- Ice Shape: Flake-style
- Self-contained condenser
- Condenser Type: Water-Cooled
- Stainless steel finish
- Power Usage: 3.53 kWh per 100 lb
- Ice Production Water Usage: 12 Gallons per 100 lb
- Condenser Cooling Water Usage: 151 Gallons per 100 lb
- Refrigerant: R290 Hydrocarbon
- High-load stainless steel bearings
- Electrical specifications: 115 Volts, 60 Hz, 1-phase, and 13.5 Amps, 1 HP compressor
- ETL listed in the United States and Canada
- ETL-Sanitation listed for safety
- CE marked
Â
 |
 |
 |
 |
Â
Â
Common Questions & Answers
Â
What are the electric specifications?
It has a standard of 115 volts, 60 hertz, and is single phase, other options are available.
Â
What is the operating limitations?
It requires ambient temperature range in between 50 to 110 degrees Fahrenheit. The ambient water temperature range must be in between 37 to 90 degrees Fahrenheit.
Â
What is the type of refrigerant that must be used?
R-404A
Â
If you have any questions, please give us a call at Jean's Restaurant Supply and one of our highly educated sales representatives will give you all the information you need. It is our pleasure to serve you and nothing will make us happier than helping you succeed.
Â
| Sold By | 1/Each |
|---|---|
| Manufacturer | Manitowoc |
| Model No. | RFP0620W |
| Color | Silver |
| Dimensions | 26" x 22" x 23-5/8" |
| Width | 22" |
| Depth | 23.63" |
| Height | 26" |
| Output | Up to 740-lb. approximately/24hrs |
| Type | Ice Machine |
| Material | Stainless steel |
| Finish | Stainless steel |
| Ice Type | Nugget Ice |
| 24 Hour Ice Yield | 760 Pounds |
| Refrigerant | R-290 (Hydrocarbon) |
| Condenser Type | Water Cooled |
| Water Usage | 12 Gallons per 100 lbs |
| Volt/Hz/Ph | 115 Volt/ 60 Hertz |
| Amps | 13.5 |
| Warranty | Machine 3 year parts and labor - Compressor 5 year parts and 3 year labor |
| Warranty Disclaimer | RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible. |
