Hobart WP6+BUILDUP Waste System Pulper Waterpress 6"

SKU

25463

Special order

Images shown may not be an exact representation of the product.

Product Description

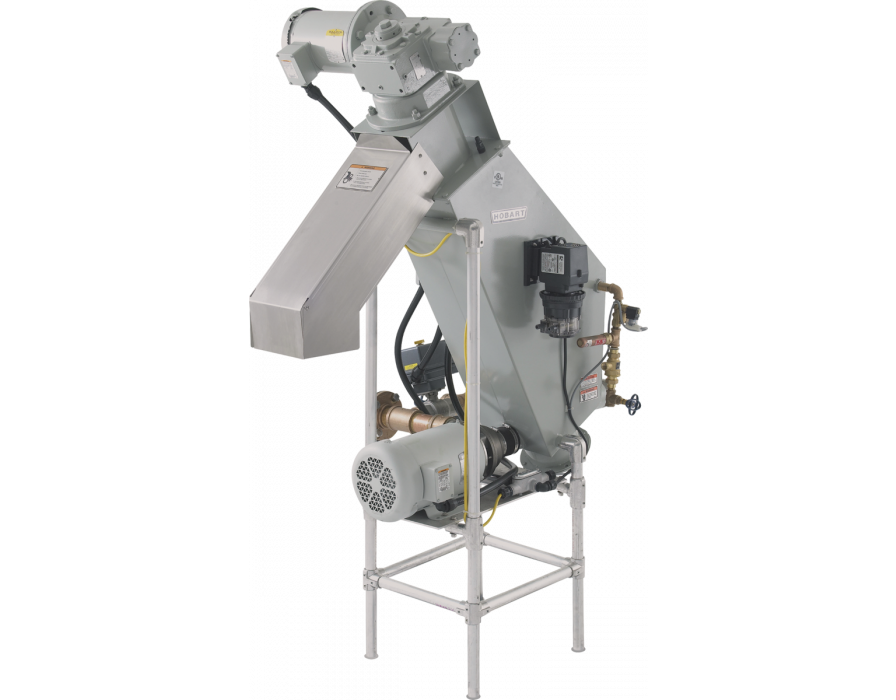

Hobart WP6+BUILDUP Waste System Pulper Waterpress

Waterpress 6"

Reduces waste volume up to 88%
For squeezing slurry and pumping return water to pulper for re-use, and discharging a semi-dry pulp
Designed to permit removal of helical screw and screen assembly without disconnecting slurry or return water piping
6" diameter gear-driven helical screw with attached nylon brush mounted within perforated cylindrical screen
Stainless steel wiper plates control pulp moisture content
Chemical pump standard
Stainless steel, removable access covers
3 HP foot-mounted, totally enclosed, fan-cooled waterpress motor
5 HP foot-mounted, totally enclosed, fan-cooled return pump motor
UL508 listed, prewired NEMA 4 stainless steel electrical control panel, Field mounted
Programmable logic controls
Control panel door handle interlock; hinged waterpress cover electrical interlock
200-230-460v/60/3

Attention CA Residents: Prop 65 Warning

Specifications

More Information
Sold By	1/Each
Resources	Spec Sheet Parts List Manual Warranty
Manufacturer	Hobart
Model No.	WP6+BUILDUP
Width	18-7/8"
Depth	28-1/4" (plus 27-15/16" clearance needed)
Height	73-3/16"
Style	Waste System Pulper Water Press
Type	Waterpress
Features	6" diameter gear-driven helical screw with attached nylon brush mounted within perforated cylindrical screen
Power Type	Electric
Horsepower	3 - 5 HP
Volt/Hz/Ph	200-230-460v/60/3
Amps	4.1 - 12.6
USA Made	Yes
Warranty	1-Year parts, labor & travel time during normal working hours within the USA.
Warranty Disclaimer	RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
