Product Description

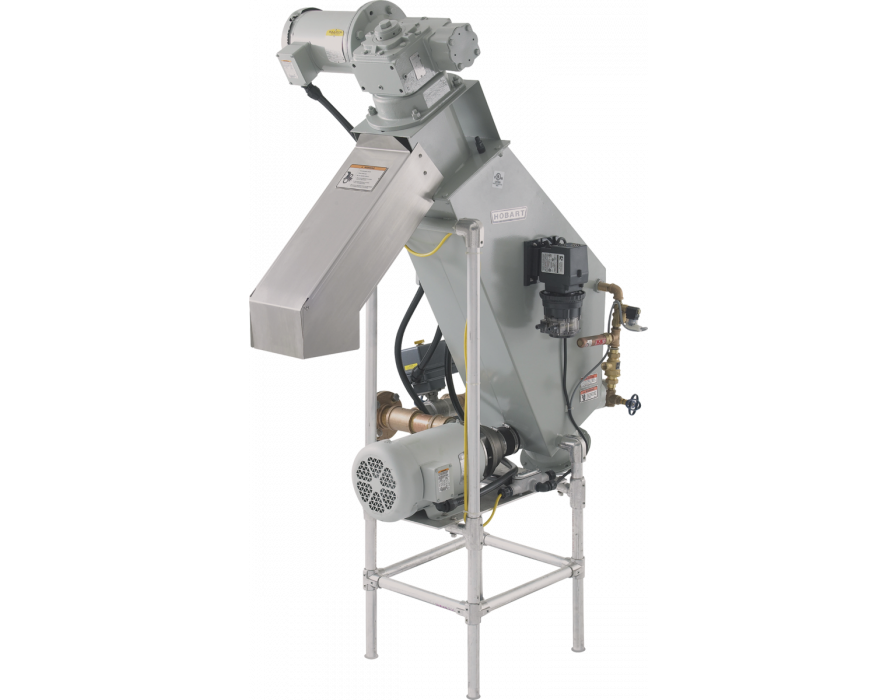

Waterpress 9"
- Reduces waste volume up to 88%
- For squeezing slurry and pumping return water to pulper for re-use, and discharging a semi-dry pulp
- Designed to permit removal of helical screw and screen assembly without disconnecting slurry or return water piping
- 9" diameter gear-driven helical screw with attached nylon brush mounted within perforated cylindrical screen
- Stainless steel wiper plates control pulp moisture content
- Chemical pump standard
- Stainless steel, removable access covers
- 3 HP foot-mounted, totally enclosed, fan-cooled waterpress motor
- 5 HP foot-mounted, totally enclosed, fan-cooled return pump motor
- UL508 listed, prewired NEMA 4 stainless steel electrical control panel, Field mounted
- Programmable logic controls
- Control panel door handle interlock; hinged waterpress cover electrical interlock
- 200-230-460v/60/3
 |
 |
Specifications
| Sold By | 1/Each |
|---|---|
| Manufacturer | Hobart |
| Model No. | WP9+BUILDUP |
| Width | 18-7/8" |
| Depth | 28-13/16" (plus 27-15/16" clearance needed) |
| Height | 74-1/16" |
| Style | Waste System Pulper Water Press |
| Type | Waterpress |
| Features | 9" diameter gear-driven helical screw with attached nylon brush mounted within perforated cylindrical screen |
| Power Type | Electric |
| Horsepower | 3 - 5 HP |
| Volt/Hz/Ph | 200-230-460v/60/3 |
| Amps | 4.1 - 12.6 |
| USA Made | Yes |
| Warranty | 1-Year parts, labor & travel time during normal working hours within the USA. |
| Warranty Disclaimer | RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible. |
