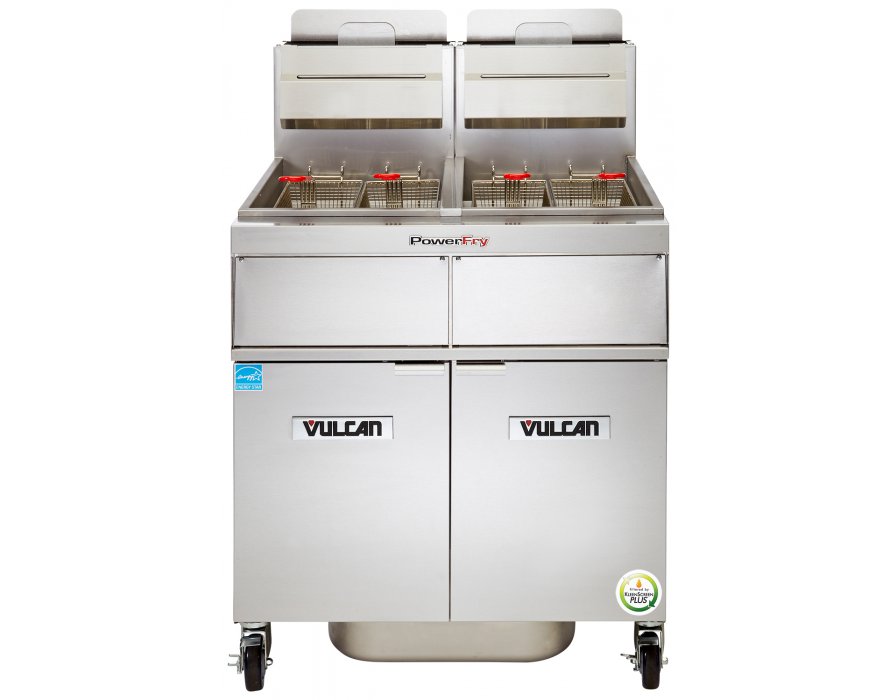

Vulcan 2TR45AF PowerFry3 Two Bank Floor Gas Fryer with Solid State Analog Controls and KleenScreen Filtration 90-100 lb. - NG, 140,000 BTU
SKU
42738
Special order
Product Description
PowerFry3 High Efficiency Freestanding Gas Fryer with KleenScreen Plus filtration
Fryer - Standard Features:
- 31"W x 30-1/8"D x 47-1/4"H, Working height 36-1/4"
- (2) battery
- 14" x 14" fry area per tank
- 45-50 lb. capacity per vat
- Solid State Analog control with melt cycles
- ThreePass heat transfer system
- Electronic ignition
- KleenScreen PLUS filtration system
- (4) Twin baskets with plastic coated handles.
- Tank brush and clean-out rod
- Stainless steel cabinet and fry tank
- (4) 6" Adjustable casters (2 swivel locking & 2 non-locking) per tank
- 140,000 BTU (70,000 BTU/hr. input per tank)
Filter - Standard Features & Accessories
- Drain valve interlock switch - turns off gas burners automatically when draining oil
- Drawn (seamless) 18 gauge stainless steel filter pan - 70 lbs. frying compound capacity on TR45F
- Stainless steel filter mesh screen filters from 2 sides; filter area = 270 square inches.
- One touch push button switch to engage pump and motor
- 6' High Temperature Discard Hose
- 1/3 H.P. motor and pump circulates frying compound at a rate of 8.0 gallons per minute.
- 120v/60/1-ph, 6 amps
 |
 |
 |
 |
 |
 |
 |
Videos
KleenScreen Filtration Plus
Video 1
Video 1
KleenScreen Filtration Plus - Changing & Cleaning the Filter
Video 2
Video 2
Specifications
| Sold By | 1/Each |
|---|---|
| Manufacturer | Vulcan |
| Model No. | 2TR45AF |
| Width | 31" |
| Depth | 30-1/8" |
| Height | 47-1/8" |
| Frying Area - Full Pot | 14" x 14" per tank/vat |
| Capacity | 90 - 100 lb. |
| Capacity per Fry Pot | 45 - 50 lb. |
| Series | PowerFry3 |
| Style | High Efficiency |
| Type | Fryer |
| Installation Type | Floor Model |
| Features | ThreePass Heat Transfer System |
| Material | Stainless Steel |
| Burner Style | Tube |
| Number of Fry Pots / Banks | 2 |
| Full or Split Pot | Full Pot |
| Built-In Filtration | Yes |
| Number of Fry Baskets | 4 |
| Gas Inlet Size | 1-1/4" NPT common rear gas connection |
| Temp Range | 200 to 390 Degrees F |
| Control Type | Solid State Analog Controls |
| Power Type | Gas - Natural Gas |
| Horsepower | 1/3 HP |
| Volt/Hz/Ph | 120v/60/1 |
| Amps | 6 Amps |
| Total BTU | 140,000 BTU (70,000 BTU per tank) |
| NSF Listed | Yes |
| USA Made | Yes |
| Warranty | 1 year limited parts & labor warranty, standard - 10 year limited tank warranty, standard |
| Warranty Disclaimer | RESIDENTIAL USERS: Warranty does not apply to non-commercial or residential applications. We reserve the right to deny shipment for residential usage; if this occurs, you will be notified as soon as possible. |
Fryer Controls
Service Manual
Parts List
KleenScreen Brochure
Warranty
